Condenser Fan Motor Relay: Testing and Inspection

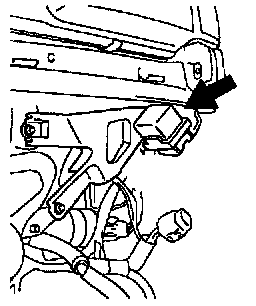

REMOVE CONDENSER FAN RELAY
a. Remove the front bumper cover
b. Disconnect the connector.
c. Release the claw and remove the relay.

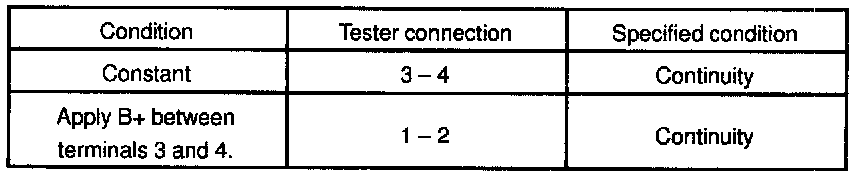

INSPECT CONDENSER FAN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSTALL CONDENSER FAN RELAY
