Removal and Installation

COMPONENTS

REMOVAL
1. REMOVE FRONT COOLING UNIT

2. REMOVE BLOWER UNIT
a. Disconnect the connectors

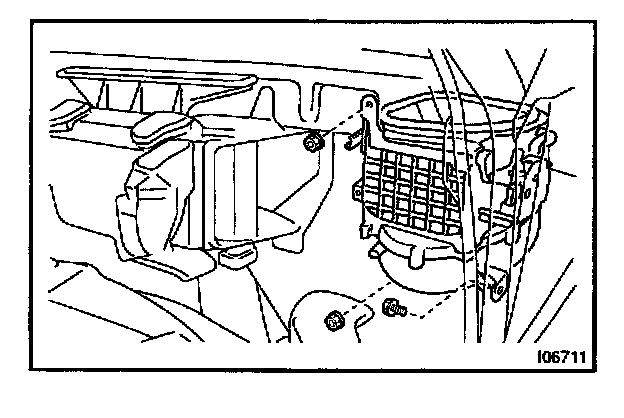

b. Remove the bolt, 2 nuts and blower unit

INSTALLATION
Installation is in the reverse order of Removal.
