Disassembly and Reassembly

DISASSEMBLY

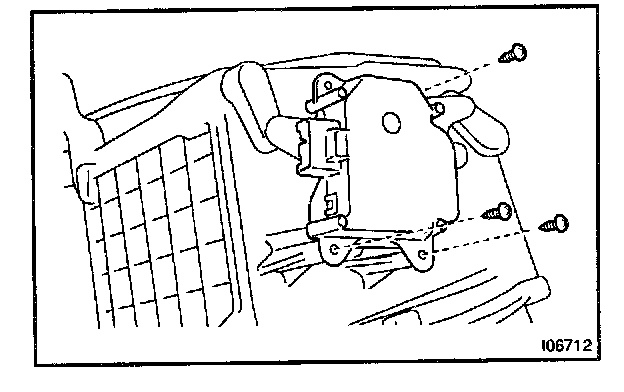

1. REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and servomotor.

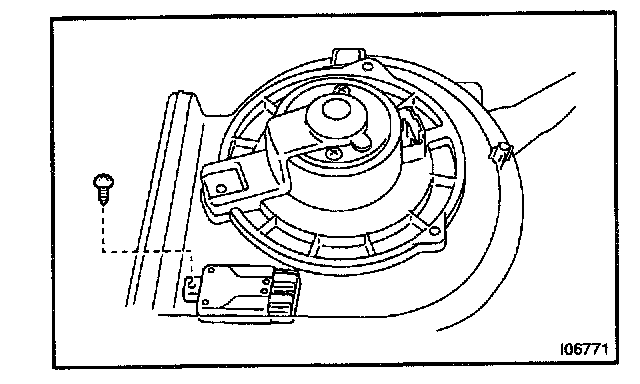

2. REMOVE BLOWER MOTOR CONTROL RELAY
a. Disconnect the connector.
b. Remove the screw and blower motor control relay.

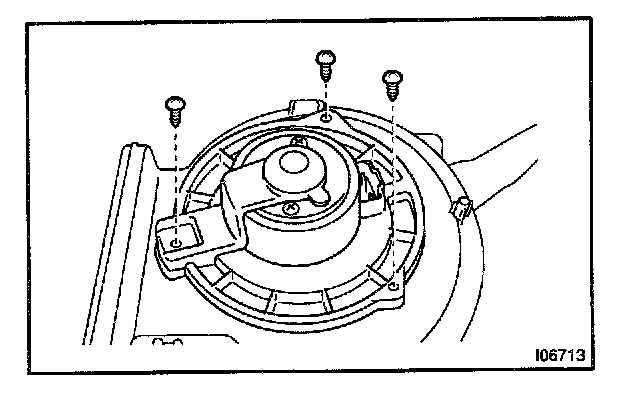

3. REMOVE BLOWER MOTOR
a. Disconnect the connection
b. Remove the 3 screws and blower motor.

4. REMOVE WIRE HARNESS
Remove the screw and wire harness.

REASSEMBLY
Reassembly is in the reverse order of Disassembly.
