REMOVE THESE PARTS:
a. Front door scuff plate RH
b. Cowl side trim RH

REMOVE HEATER MAIN RELAY

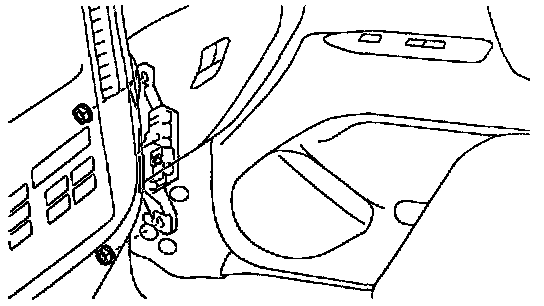

a. Remove the 2 No. 3 junction block set nuts.
b. Loosen the bolt and disconnect the connector.
c. Pull the junction block.

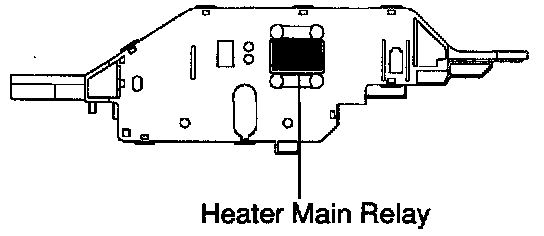

d. Remove the heater main relay from junction block.

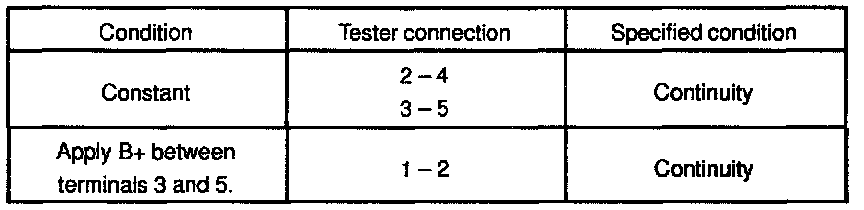

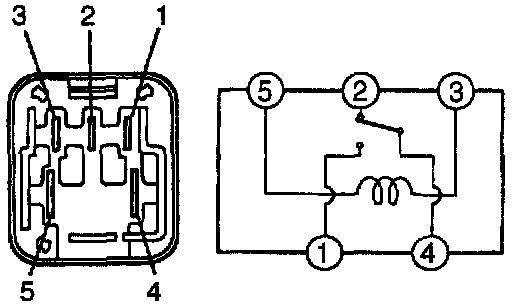

INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSTALL HEATER MAIN RELAY TO NO.3 JUNCTION BLOCK

INSTALL 2 NO.3 JUNCTION BLOCK SET NUTS

INSTALL THESE PARTS:
a. Cowl side trim RH
b. Front door scuff plate RH
