Home >> Lexus Truck >> 1998 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Specifications >> Tightening Specifications

Tightening Specifications

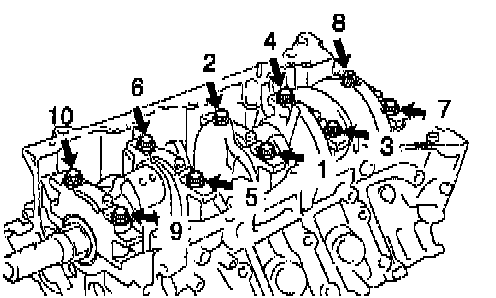

Torque Sequence:





















Torque Sequence:
