Home >> Lexus Truck >> 1998 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Transmission Speed Sensor, A/T >> Speed Sensor No.2 Circuit

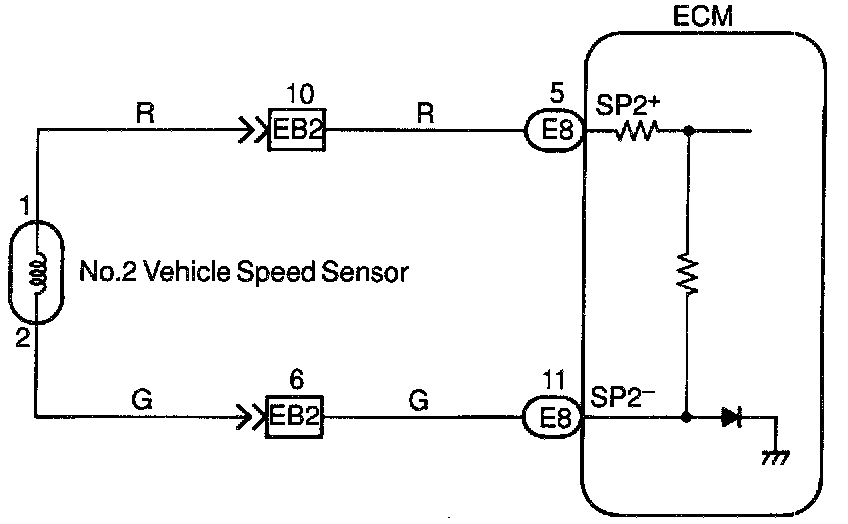

Speed Sensor No.2 Circuit
