Rear

BRAKE PAD INSPECTION

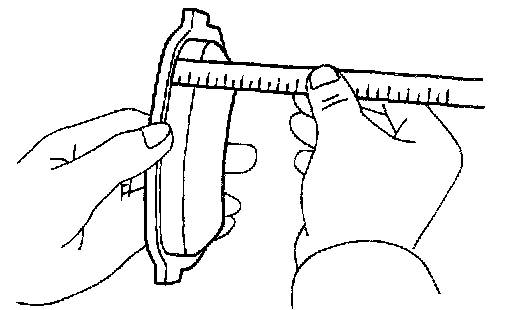

1. Measure pad lining thickness.
- Using a ruler, measure the pad lining thickness.

Standard thickness: 12.0 mm (0.472 inch)
Minimum thickness: 1.0 mm (0.039 inch)

- Replace the pad if the pad's thickness is at the minimum or if it shows signs of uneven wear.
