Front

INSPECTION

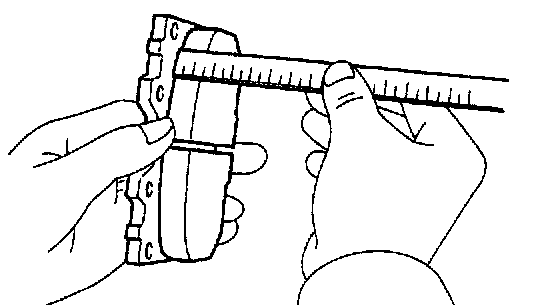

1. Measure pad lining thickness.
Using a ruler, measure the pad lining thickness.

Standard thickness: 11.5 mm (0.453 inch)
Minimum thickness: 1.0 mm (0.039 inch)

Replace the pad if the pad's thickness is at the minimum or if it shows signs of uneven wear.
