Removal and Installation

REMOVAL





1. Disconnect flexible hose.

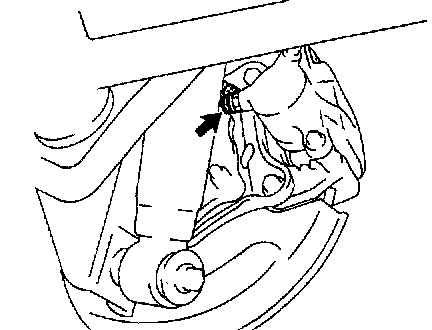

- Remove the union bolt and gasket from the caliper, then disconnect the flexible hose from the caliper.
- Use a container to catch brake fluid as it drains out.
Torque: 30 Nm (22 ft. lbs.)

HINT: At the time of installation, please refer to the following item.
- Install the flexible hose lock securely in the lock hole in the caliper.

2. Remove caliper.
a. Hold the sliding pin and loosen the 2 installation bolts.
Torque: 26 Nm (20 ft. lbs.)
b. Remove the 2 installation bolts.
c. Remove the caliper from the torque plate.
3. Remove 2 brake pads with anti-squeal shims.
4. Remove 4 pad support plates.

INSTALLATION
- Installation is in the reverse order of removal.
1. After installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
