Disassembly and Assembly

DISASSEMBLY

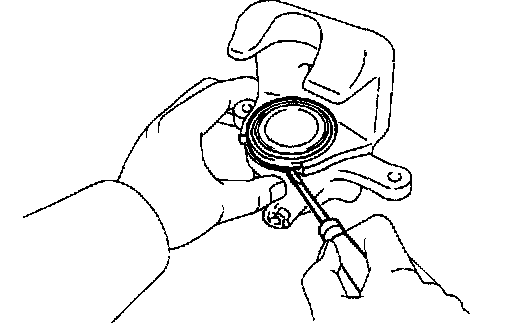

1. Remove cylinder boots.
- Using a screwdriver, remove the cylinder boot from the caliper.




2. Remove piston.
a. Place a piece of cloth or a similar object between the piston and caliper.

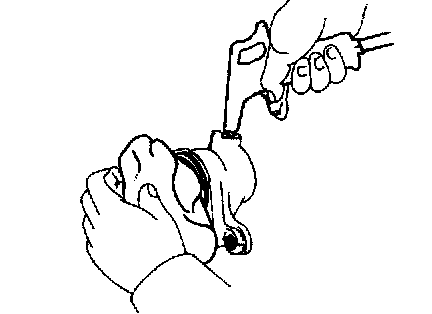

b. Use compressed air to remove the piston from the cylinder.

CAUTION: Do not place your fingers in front of the piston when using compressed air.

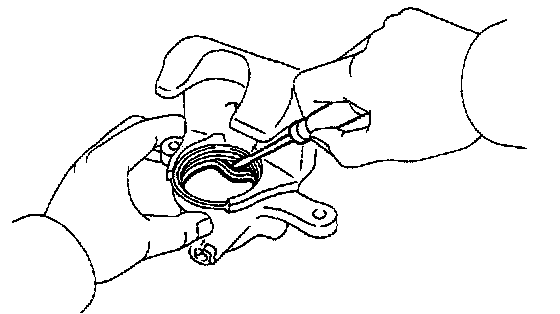

3. Remove piston seals from brake cylinder.
- Using a screwdriver, remove the piston seals from the caliper.

4. Remove pin boot and sliding bushing.
- Using a screwdriver and hammer, tap out pin boot and sliding bushing.
HINT: Tape the screwdriver tip before use.


REASSEMBLY
Reassembly is in the reverse order of disassembly.




NOTICE: Apply lithium soap base glycol grease to the parts indicated by the arrows.
