Removal and Installation

REMOVAL
1. Remove front wheel.

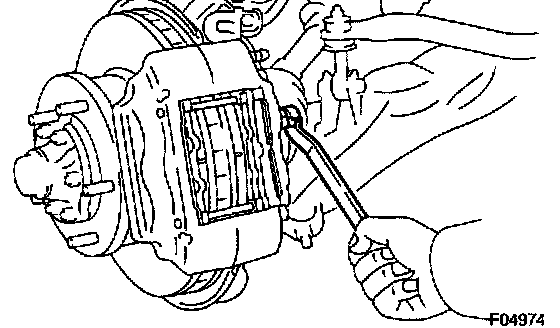

2. Disconnect brake line.
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 30 Nm (22 ft. lbs.)
b. Use a container to catch the brake fluid as it drains out.

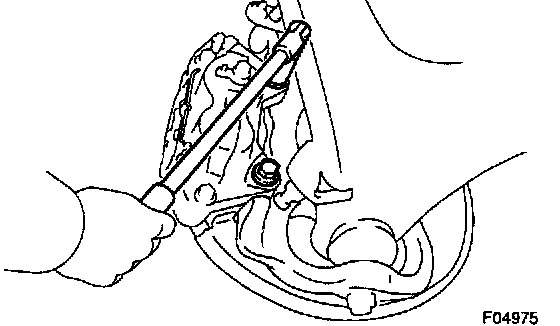

3. Remove caliper.
Remove the 2 mounting bolts and remove the caliper.
Torque: 123 Nm (90 ft. lbs.)
4. Remove clip and 2 pins.
5. Remove 2 pad retainer clips.
6. Remove 2 pads, anti-squeal shims and pad retainers.

INSTALLATION
Installation is in the reverse order of removal.
1. After installation, fill brake reservoir with brake fluid and bleed brake system.
2. Check for leaks.
