Disassembly and Assembly

DISASSEMBLY

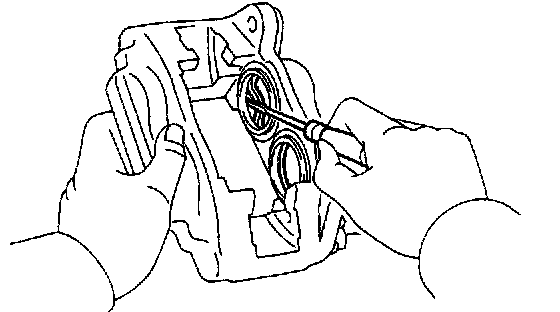

1. Remove cylinder boot set rings and cylinder boots.
Using a screwdriver, remove the 4 cylinder boot set rings and 4 cylinder boots from the caliper.

2. Remove pistons from cylinder.



a. Prepare the wooden plate to hold the pistons.



b. Place the plate between the pistons and insert a pad at one side.
c. Use compressed air to remove the pistons alternately from the cylinder.

CAUTION: Do not place your fingers in front of the piston when using compressed air.

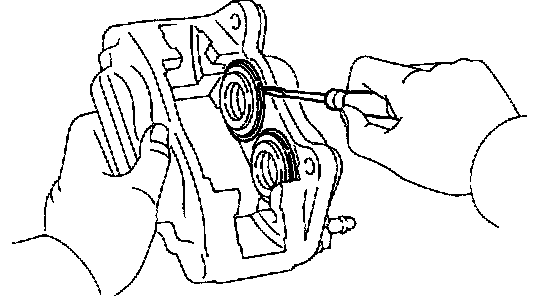

3. Remove piston seals from brake cylinder.
- Using a screwdriver, remove the 4 piston seals from the cylinder.


REASSEMBLY
- Reassembly is in the reverse order of disassembly.




NOTICE: Apply lithium soap base glycol grease to the parts indicated by the arrows.
