Brake Warning Light Circuit

Brake Warning Light

CIRCUIT DESCRIPTION
The BRAKE warning light lights up when the brake fluid is insufficient and an abnormality occurs in the hydro brake booster.





WIRING DIAGRAM

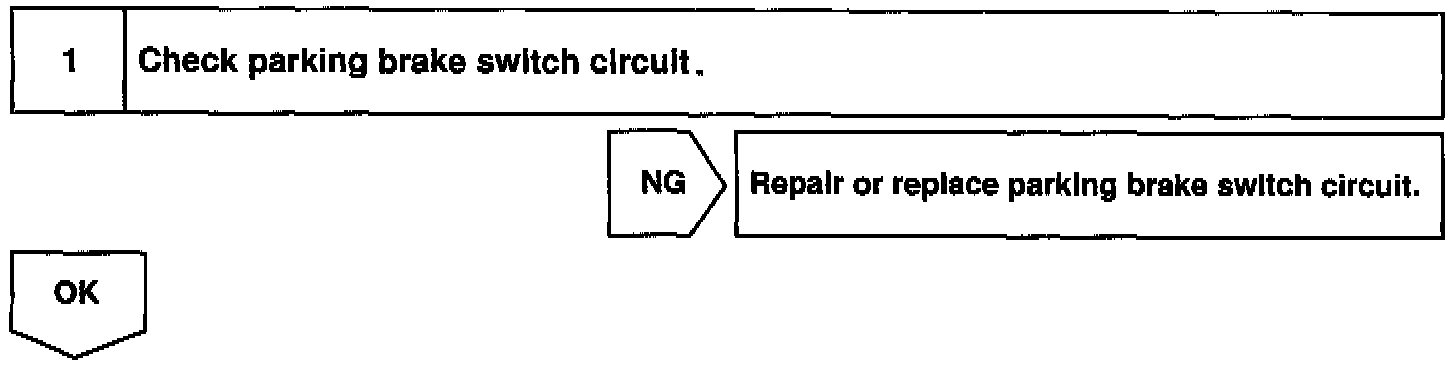

Step 1:

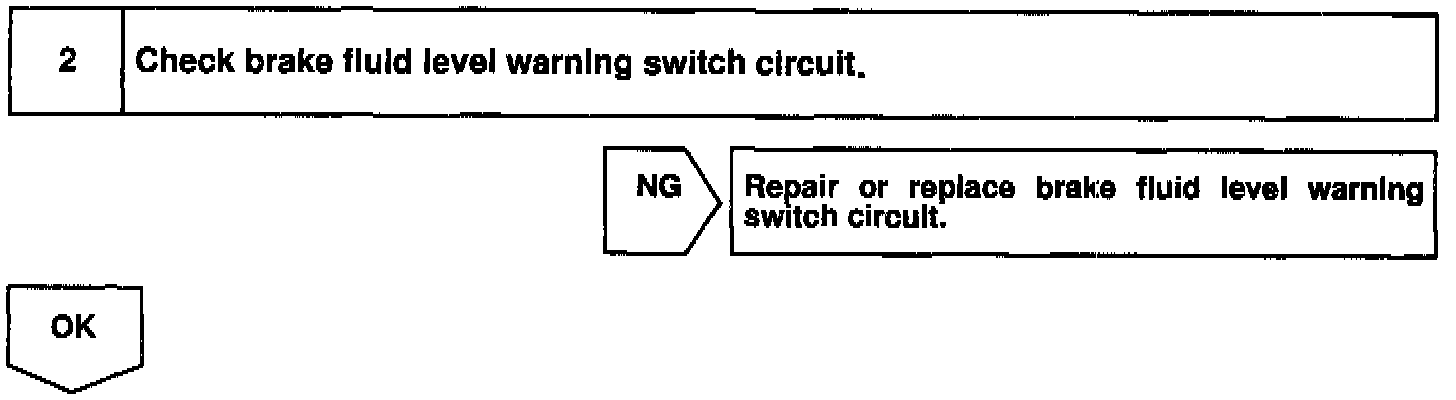

Step 2:

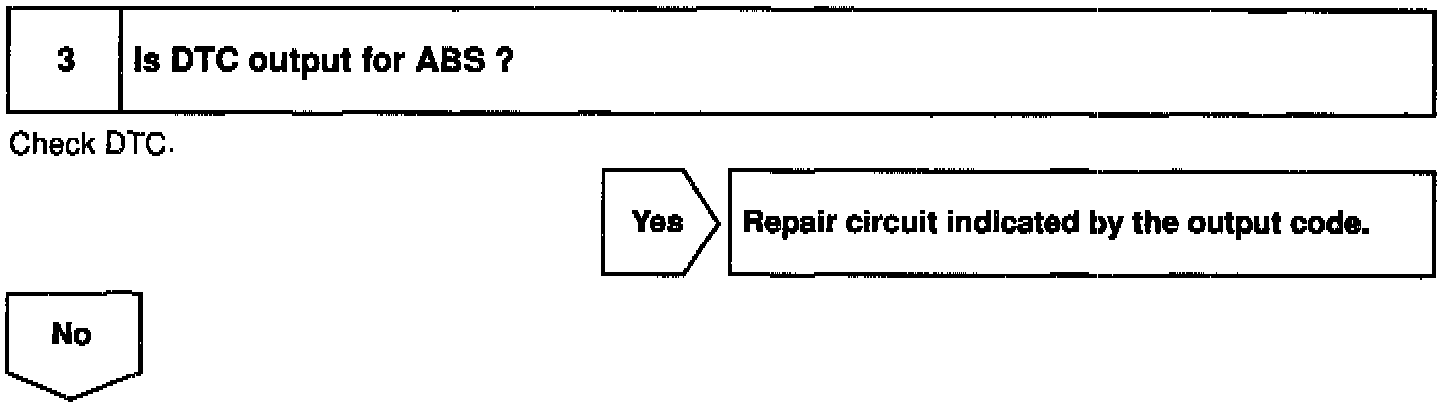

Step 3:

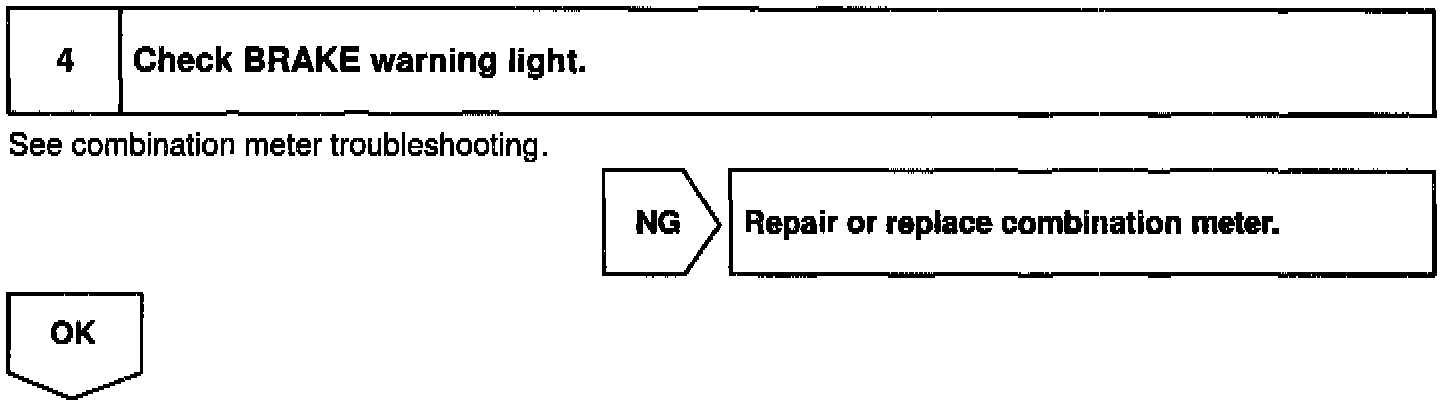

Step 4:

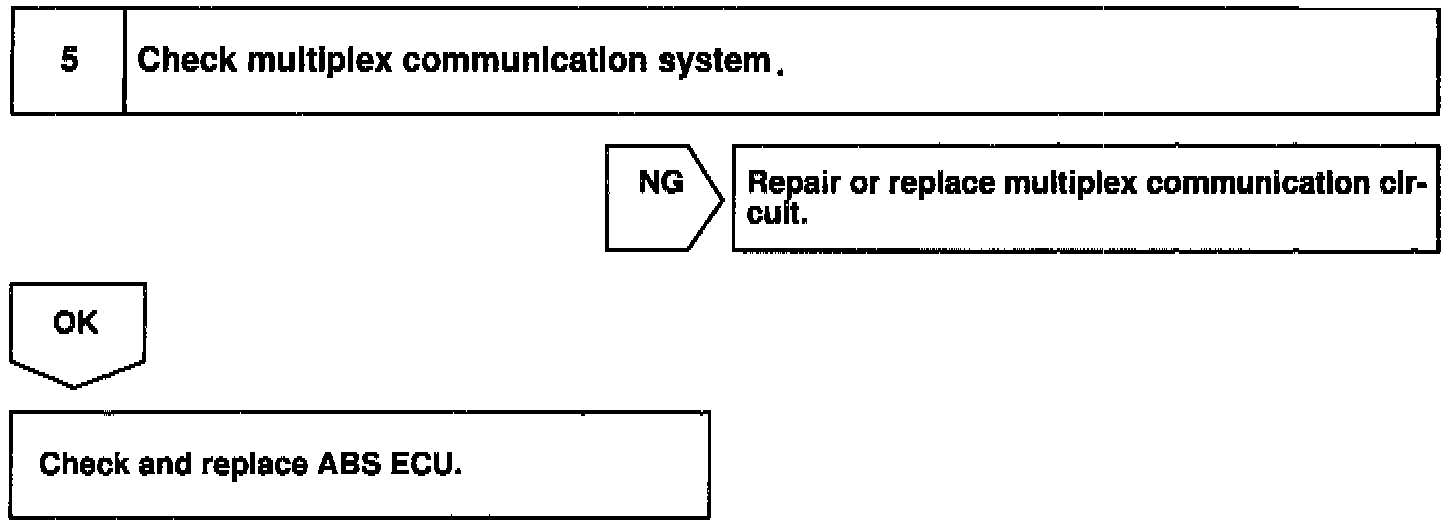

Step 5:

INSPECTION PROCEDURE
