Confirm Functioning of SST

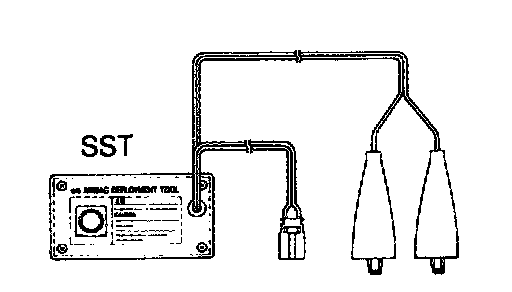

When deploying the airbag, always use the specified
SST: SRS AIRBAG DEPLOYMENT TOOL.
SST 09082-00700

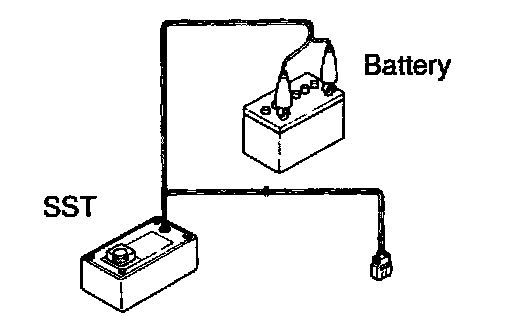

1. CONNECT SST TO BATTERY
Connect the red clip of the SST to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.

HINT: Do not connect the yellow connector which connects with the supplemental restraint system.

Confirm Functioning Of SST:

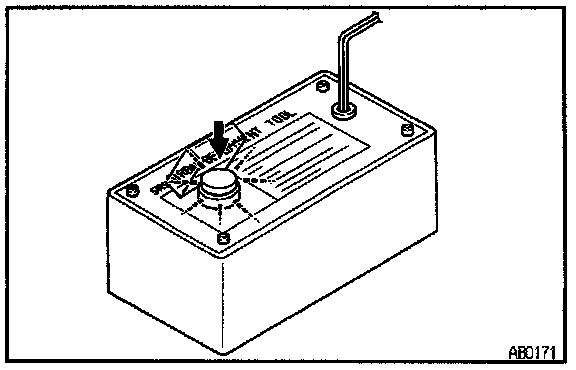

2. CONFIRM FUNCTIONING OF SST
Press the SST activation switch, and confirm the LED of the SST activation switch lights up.

CAUTION: If the LED lights up when the activation switch is not being pressed, SST malfunction is probable, so definitely do not use the SST.
