Home
>>
Lexus Truck
>>
1997
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Power Source
Power Source

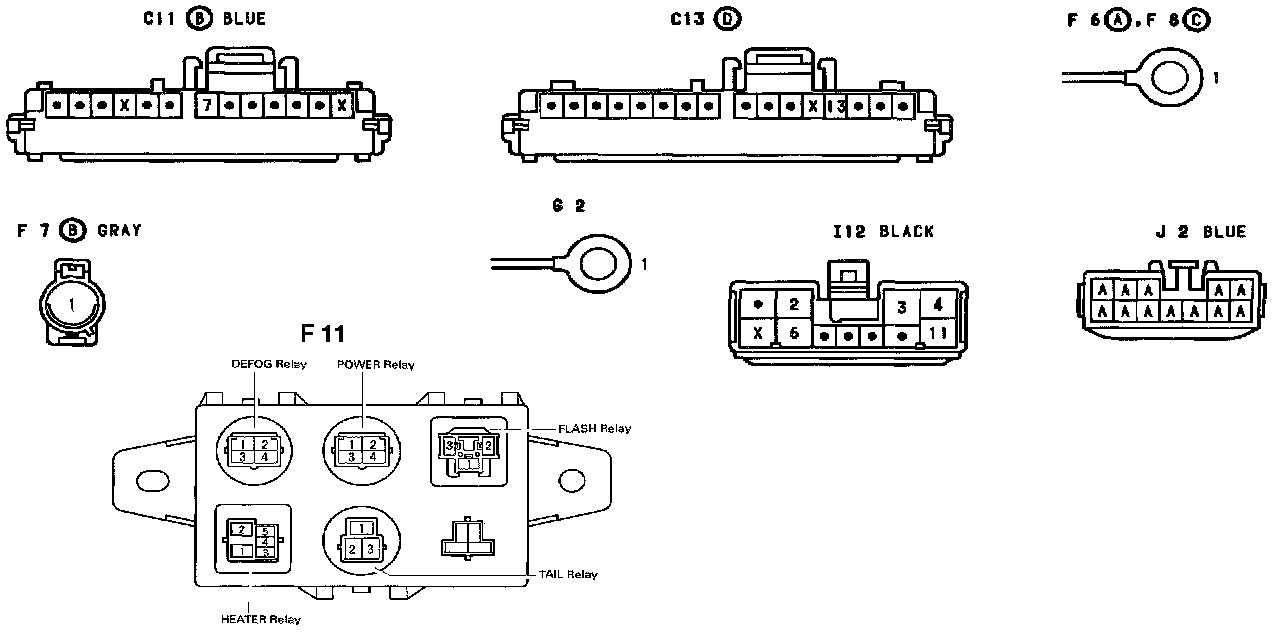

Power Source-Connectors:
