Removal and Installation

REMOVAL

1. REMOVE FRONT SEAT RH

2. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES

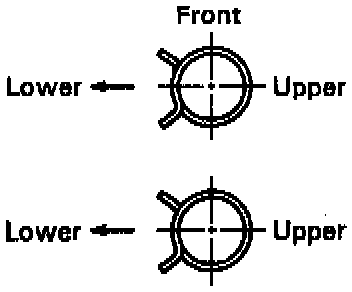

INSTALLATION HINT: Install the hose clip in a position, as shown in the illustration

3. REMOVE REAR HEATER UNIT

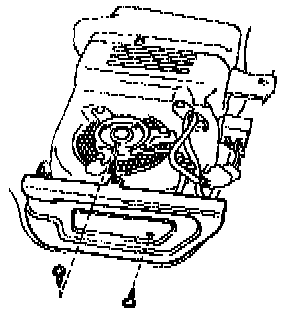

a. Remove the 2 screws and side cover.





b. Disconnect the connector.
c. Remove the nut and screw then remove the rear heater duct.

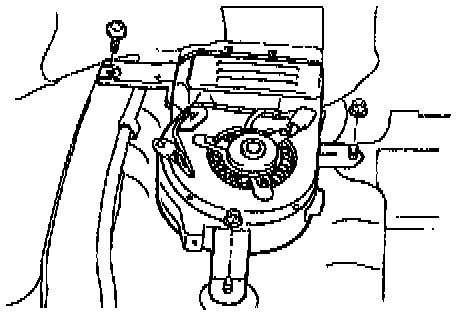

d. Remove the bolt, 2 nuts and heater unit.





e. Remove the 3 screws and air duct.

INSTALLATION
Installation is in the reverse order of removal.
