Removal and Installation

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

INSTALLATION HINT: Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount:
850 ± 50 g (29.98 ± 1.76 oz.)

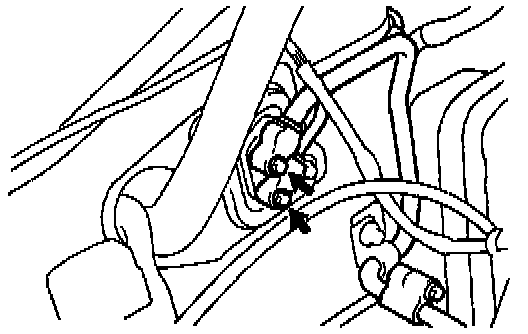

2. DISCONNECT SUCTION TUBE AND LIQUID TUBE FROM COOLING UNIT FITTING
Remove the 2 bolts and both tubes.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

REMOVAL NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

INSTALLATION HINT: Lubricate 2 new Orings with compressor oil and install the tubes.





3. REMOVE THESE PARTS:
a. Glove compartment door
b, Glove compartment door reinforcement

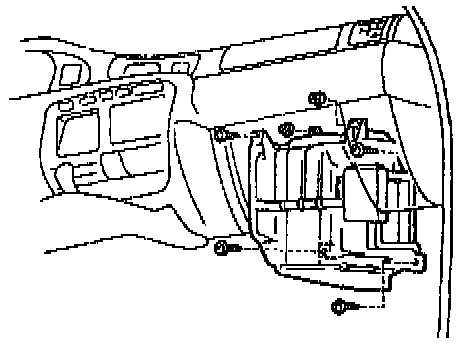

4. REMOVE COOLING UNIT
a. Disconnect the connectors.
b. Remove the 4 screws, 2 nuts and cooling unit.

INSTALLATION
Installation is in the reverse order of removal.
