Oil Spray Jet: Service and Repair

REMOVAL
1. Remove cylinder head.
2. Remove timing chain and gears.
3. Remove crankshaft.

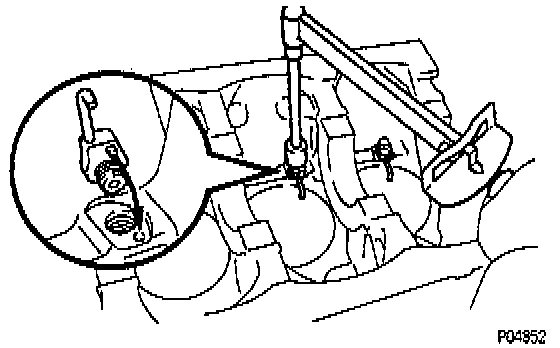

4. Remove oil nozzles.

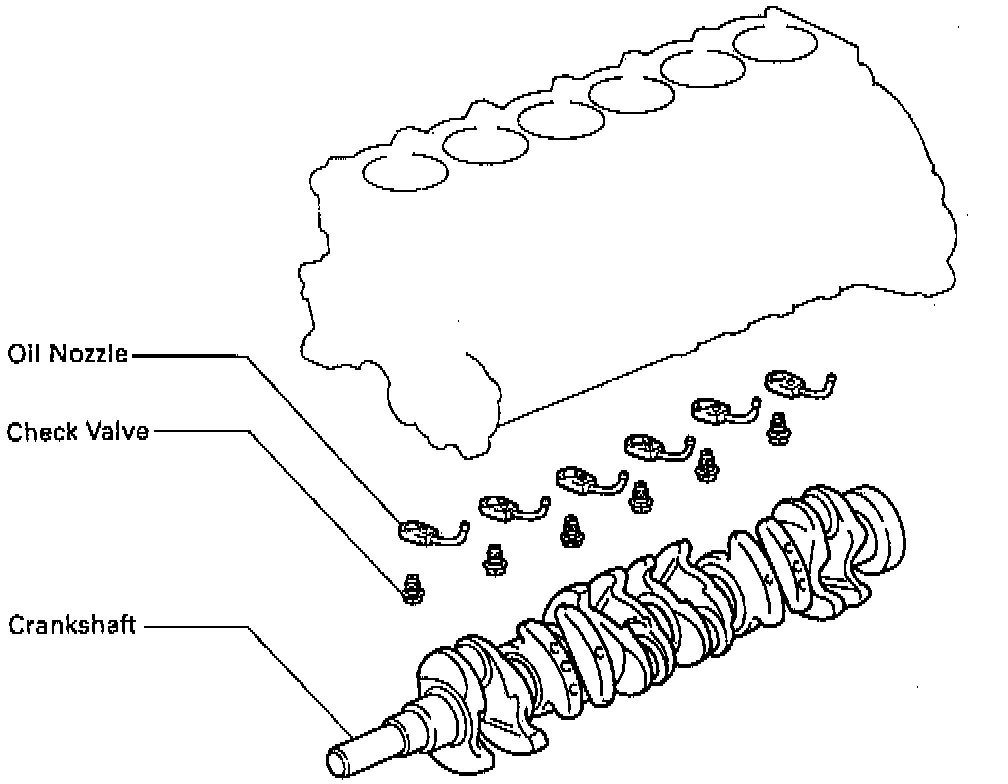

Remove the 6 check valves and oil nozzles.
Torque: 25 Nm (18 ft lbs.)

INSTALLATION
Installation is in the reverse order of removal.

NOTE: Align the pin of the nozzle with the win hole of the cylinder block.
