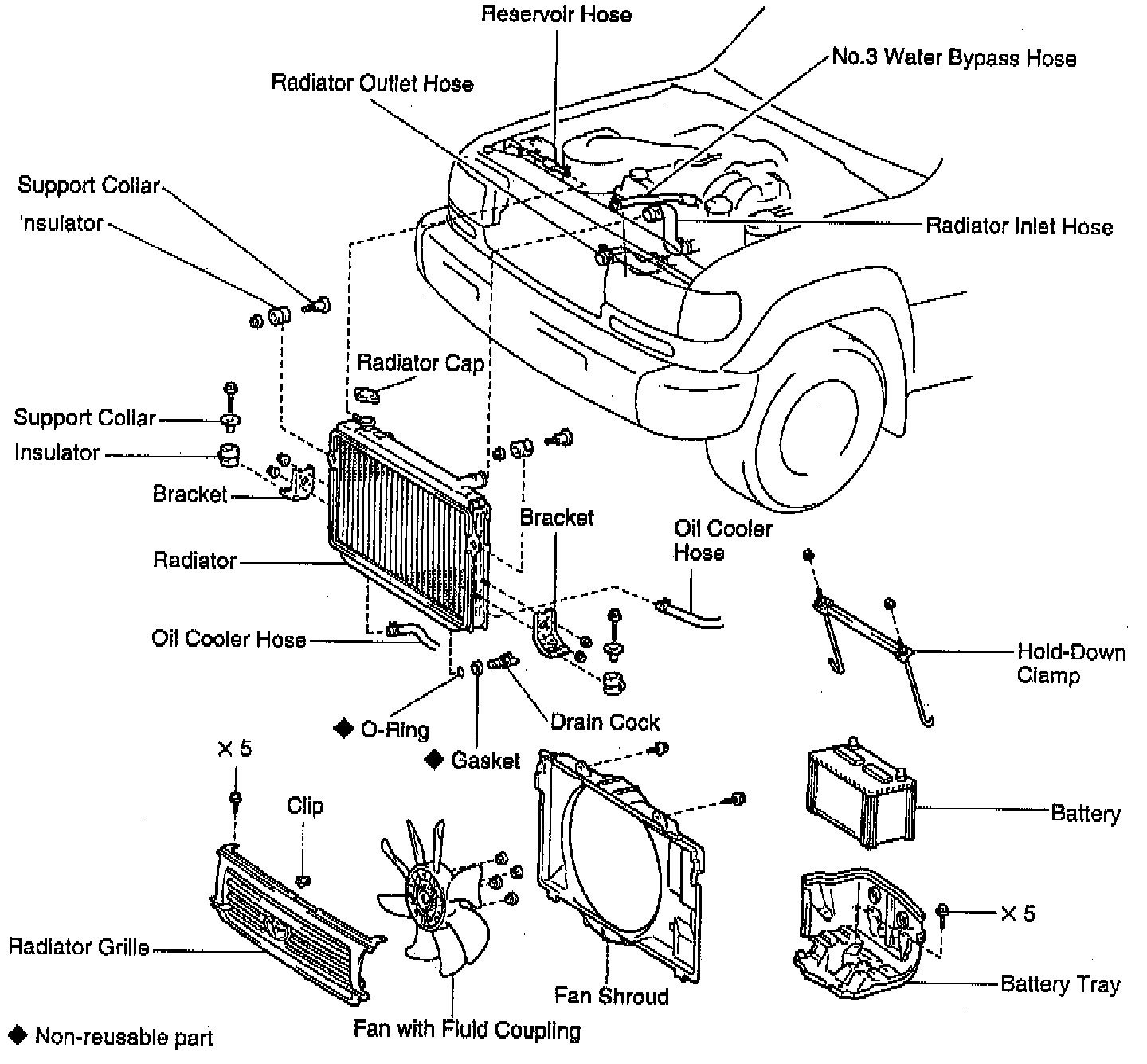

Removal

1. Drain engine coolant.
2. Remove battery and battery tray.
(a) Disconnect the battery cables.
(b) Remove the nuts, hold-down clamp and battery.
(c) Remove the bolt and disconnect the ground strap.

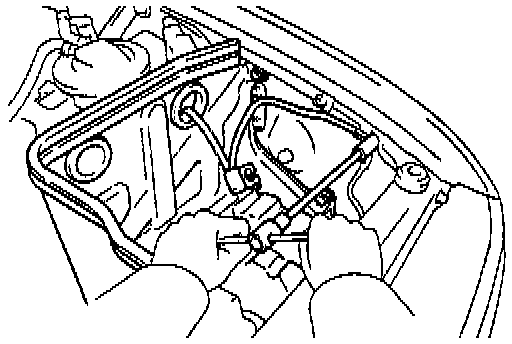

(d) Remove the 5 bolts and battery tray.
3. Remove radiator grille.
Remove the 5 screws, clip and radiator grille.

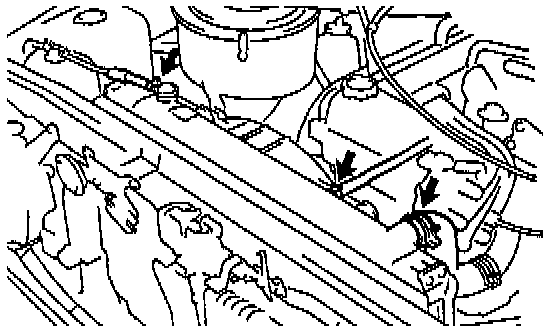

4. Disconnect No. 3 water bypass hose.
5. Disconnect radiator inlet hose.
6. Disconnect radiator reservoir hose.
7. Remove radiator.
(a) Stretch the belts and loosen the water pump pulley mounting nuts.

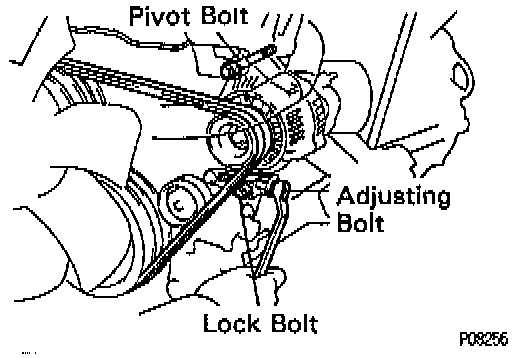

(b) Loosen the lock, pivot and adjusting bolts of the generator, and remove the drive belts.

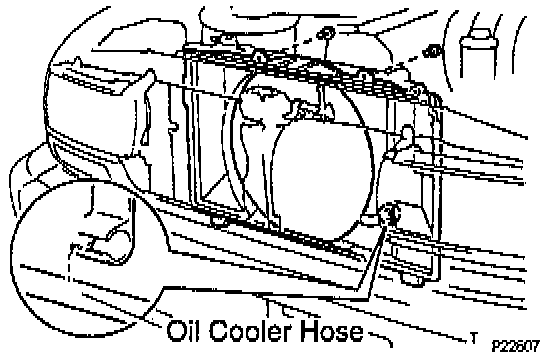

(c) Disconnect the oil cooler hose from the clamp on the fan shroud.
(d) Remove the 2 bolts holding the fan shroud to the radiator.
(e) Remove the 4 water pump pulley mounting nuts.
(f) Pull out the fan with fluid coupling, water pump pulley and fan shroud.





8. Disconnect A/T oil cooler hoses.
9. Disconnect radiator outlet hose.
10. Remove radiator.

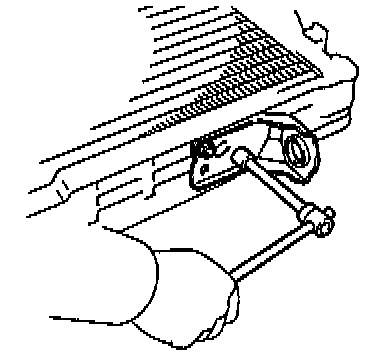

(a) Remove the 2 bolts, 2 nuts and radiator.





(b) Remove the 4 nuts and 2 radiator brackets.
