Installation

1. Install radiator.
(a) Install the 2 radiator brackets with the 4 nuts.
Torque: 12 Nm (9 ft. lbs.)





(b) Install the radiator with the 2 bolts and 2 nuts.
Torque:
Bolt: 18 Nm (13 ft. lbs.)
Nut: 12 Nm (9 ft. lbs.)





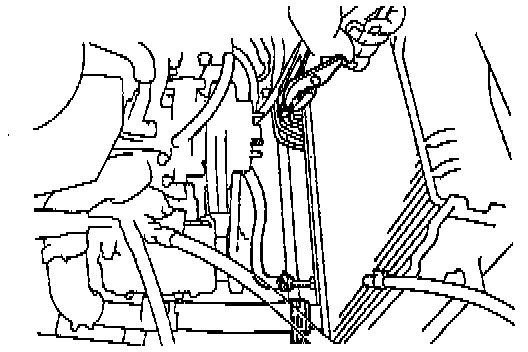

2. Connect A/T oil cooler hoses.
3. Connect radiator outlet hose.
4. Install water pump pulley, fan shroud, fan with fluid coupling and drive belts.

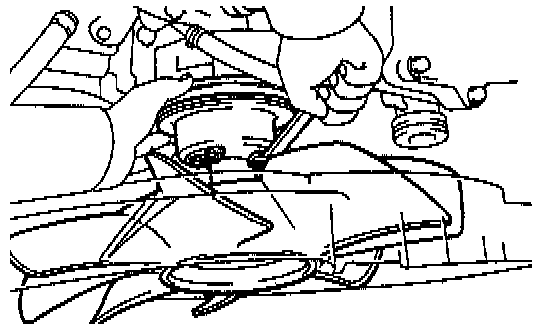

(a) Place the fan with fluid coupling, water pump pulley and fan shroud in position.





(b) Temporarily install the fan pulley mounting nuts.
(c) Install the fan shroud with the 2 bolts.
Torque: 5.0 Nm (43 inch lbs.)
(d) Connect the oil cooler hose to the clamp on the fan shroud.
(e) Install the drive belts with the adjusting bolt and pivot bolt.
(f) Stretch the belts tight and tighten the 4 water pump pulley mounting nuts.
(g) Adjust the drive belts.





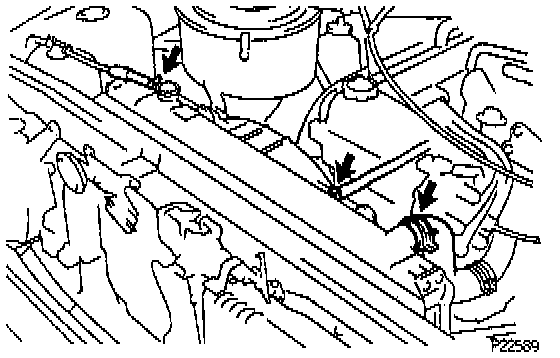

5. Connect radiator reservoir hose.
6. Connect radiator inlet hose.
7. Connect No. 3 water bypass hose.

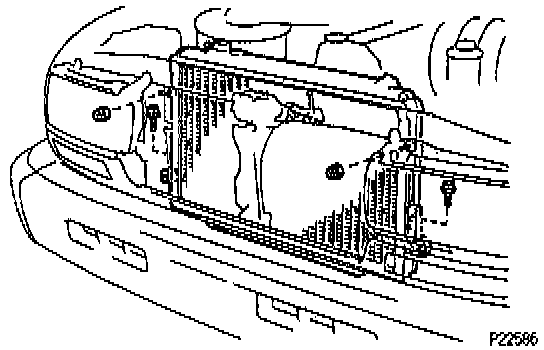

8. Install radiator grille.
Install the radiator grille with the 5 screws and clip.
9. Install battery and battery tray.





(a) Install the battery tray with the 5 bolts.
(b) Connect the ground strap with the bolt.
(c) Install the battery with the hold-down clamp and nuts.
(d) Connect the battery cables.
10. Fill radiator with engine coolant.
11. Start engine and check for leaks.
12. Check automatic transmission fluid level.
