Lexus Truck
>>
1997
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transmission and Drivetrain
>>
System Diagram
>>
Front Differential
Front Differential

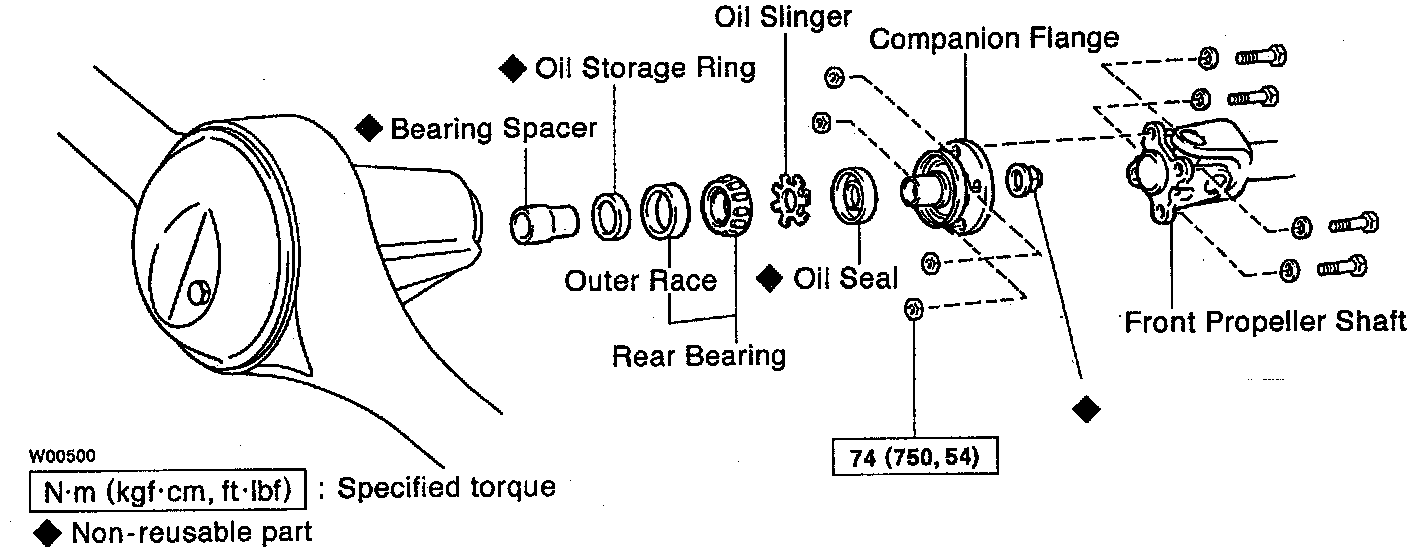

Front Differential Rear Oil Seal Components:
