Lexus Truck
>>
1997
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Caliper
>>
Rear
Rear

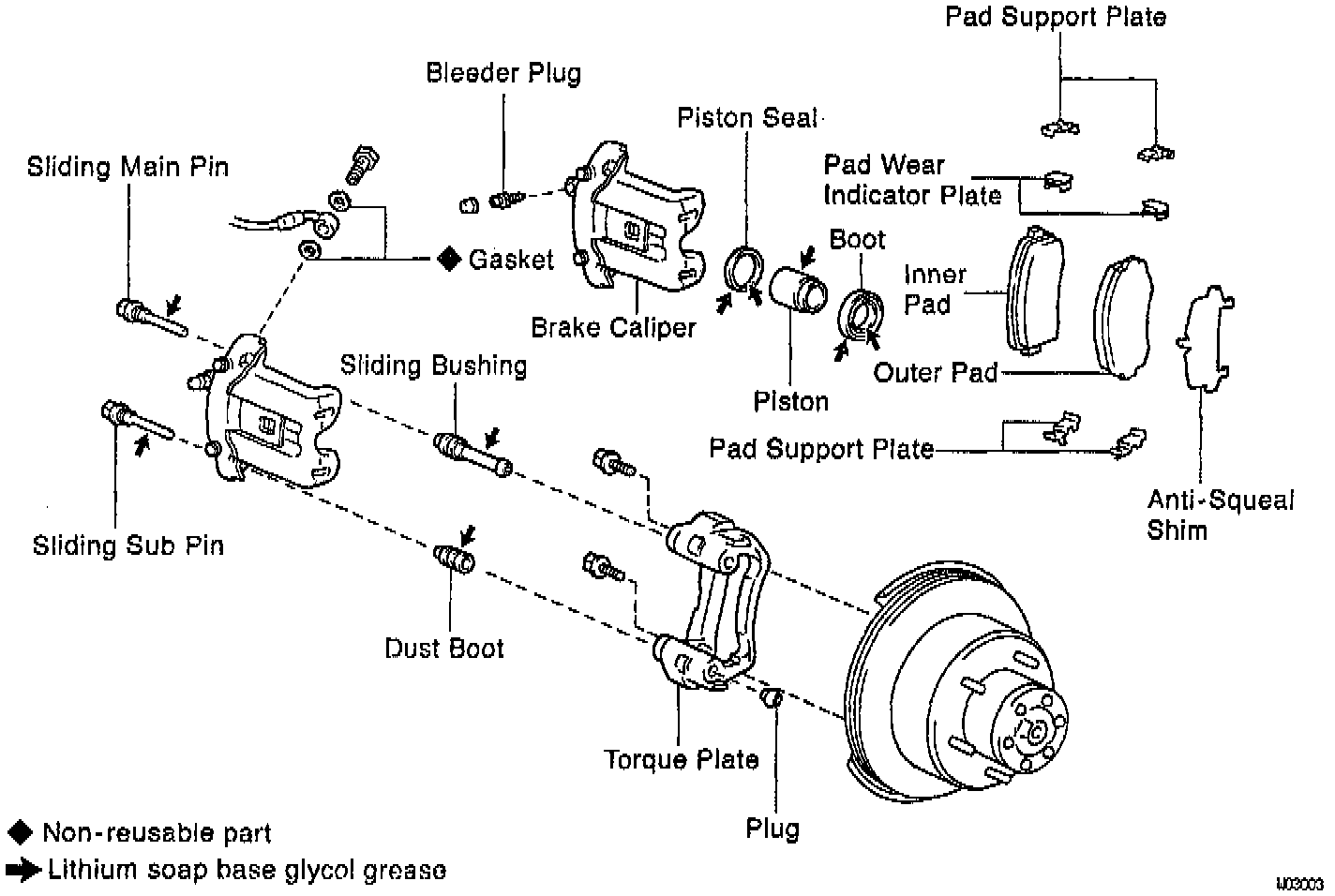

Rear Brake Caliper Components:

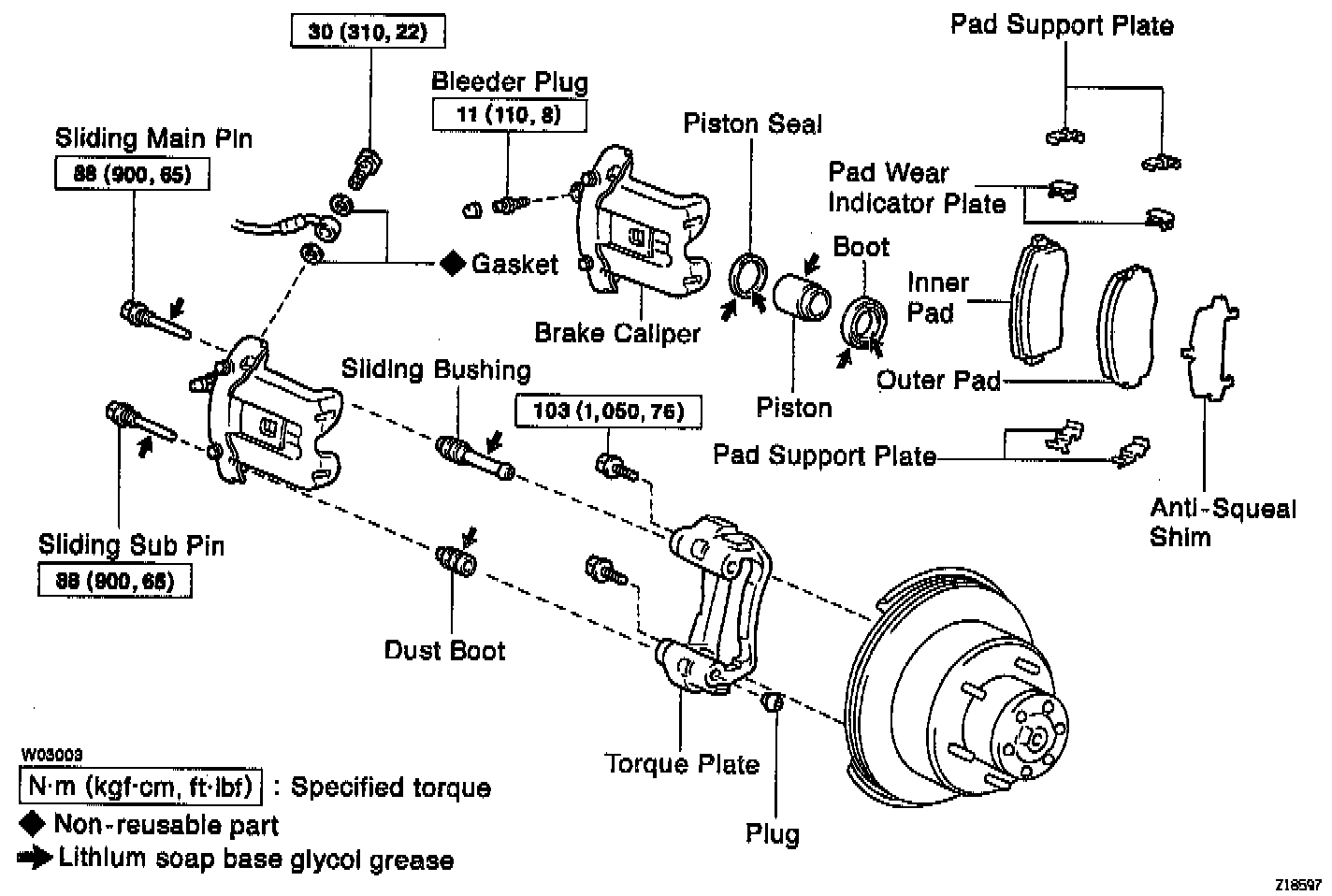

Rear Disc Brake Components:
