Removal and Installation

Brake Master Cylinder Components:

REMOVAL
1. Disconnect Level Warning Switch connector.
2. Take out fluid with syringe.

CAUTION: Do not let brake fluid remain on a painted surface. Wash it off immediately.

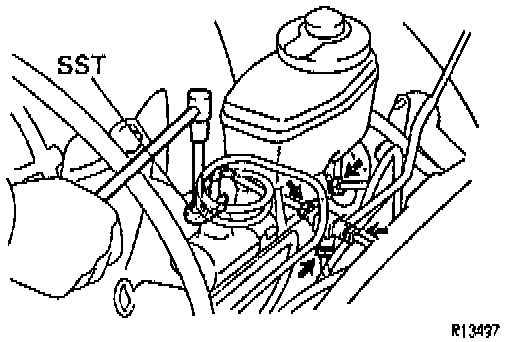

Disconnect Brake Lines:

3. Disconnect brake lines.
Using Special Service Tool (SST) # 09023-00100, disconnect the brake lines from the Master Cylinder and 3-way.
^ Torque: 15 Nm (11 ft. lbs.)

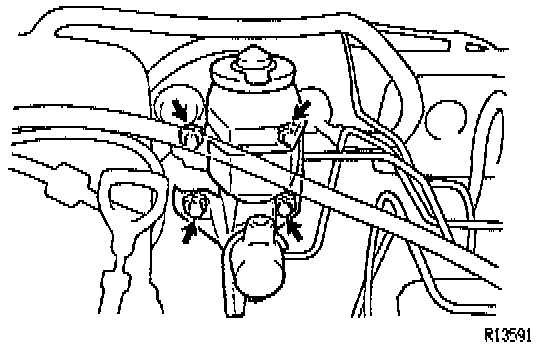

Remove Master 4 Mounting Nuts And Master Cylinder:

4. Remove Master Cylinder.
(a) Remove the 4 mounting nuts.
^ Torque: 13 Nm (9 ft. lbs.)
(b) Remove the 3-way, check valve bracket, wire harness clamp and bracket.
(c) Pull out the Master Cylinder and gasket.

INSTALLATION
Installation is in the reverse order of removal, noting the following:
^ Before installation, adjust length of brake booster push rod.
^ After installation, fill brake reservoir with brake fluid, bleed brake system. Service and Repair
^ Check for leaks, check and adjust brake pedal.
