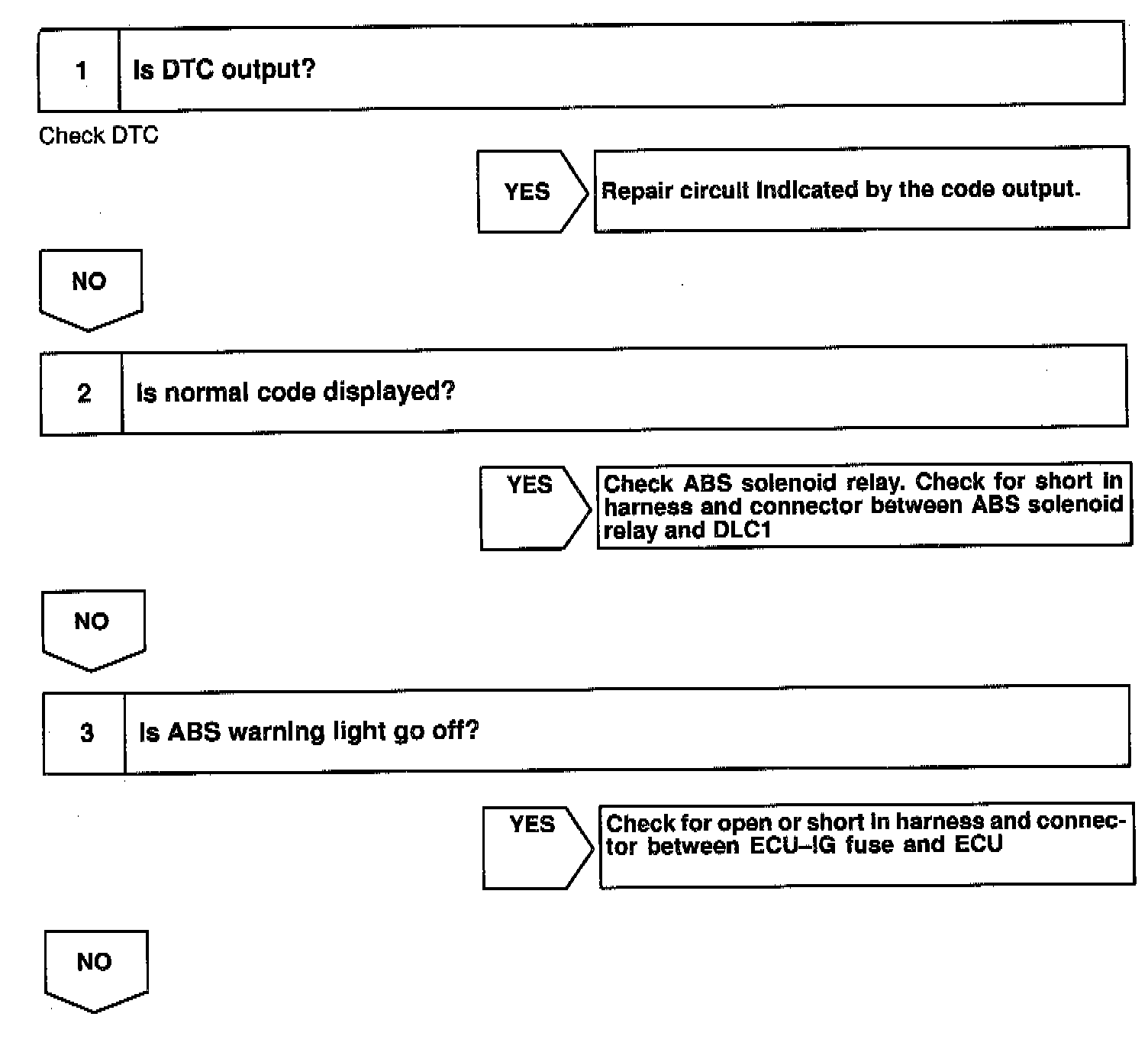

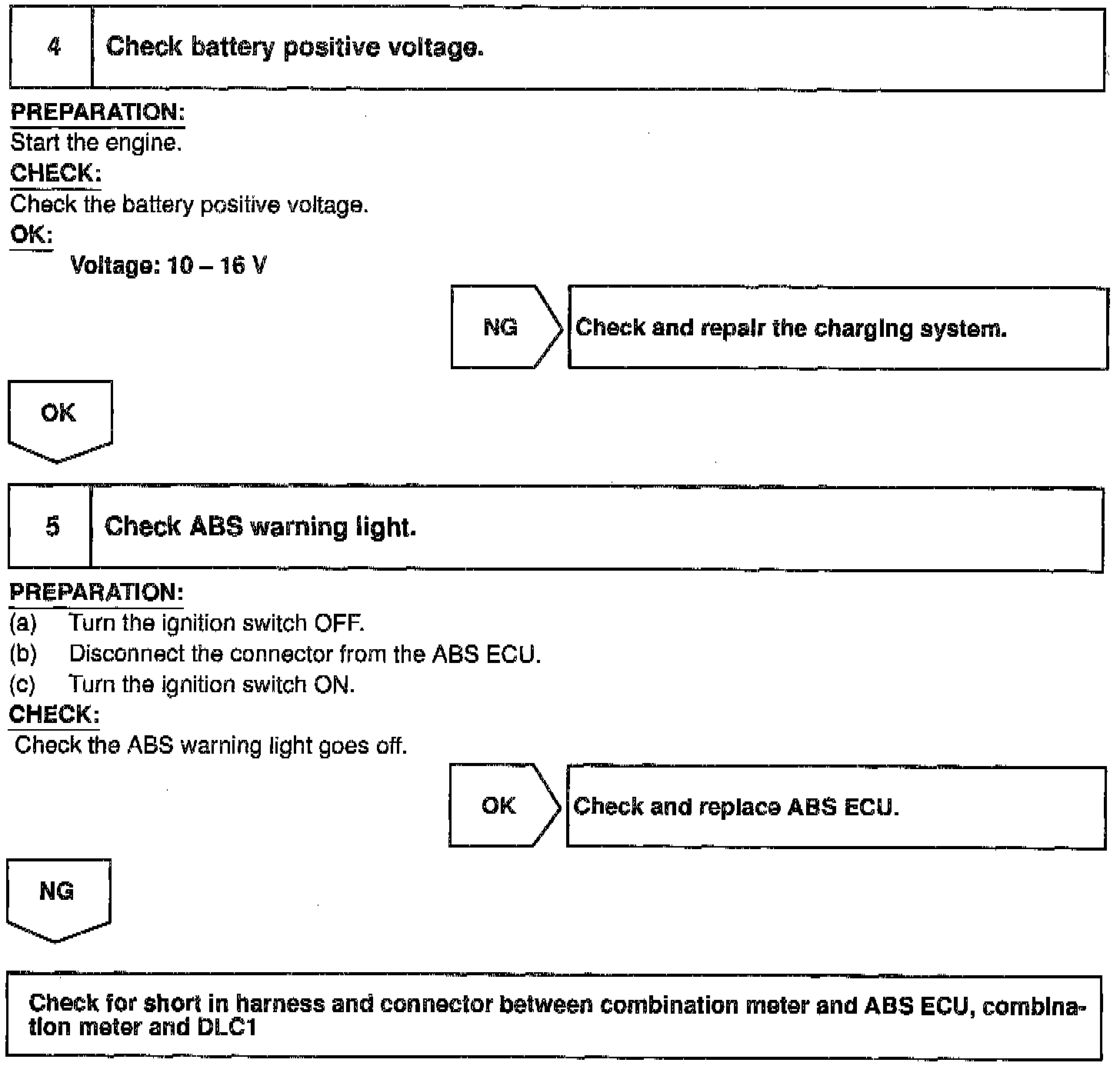

Related Tests, Information and Procedures

(Part 1 Of 2):

(Part 2 Of 2):

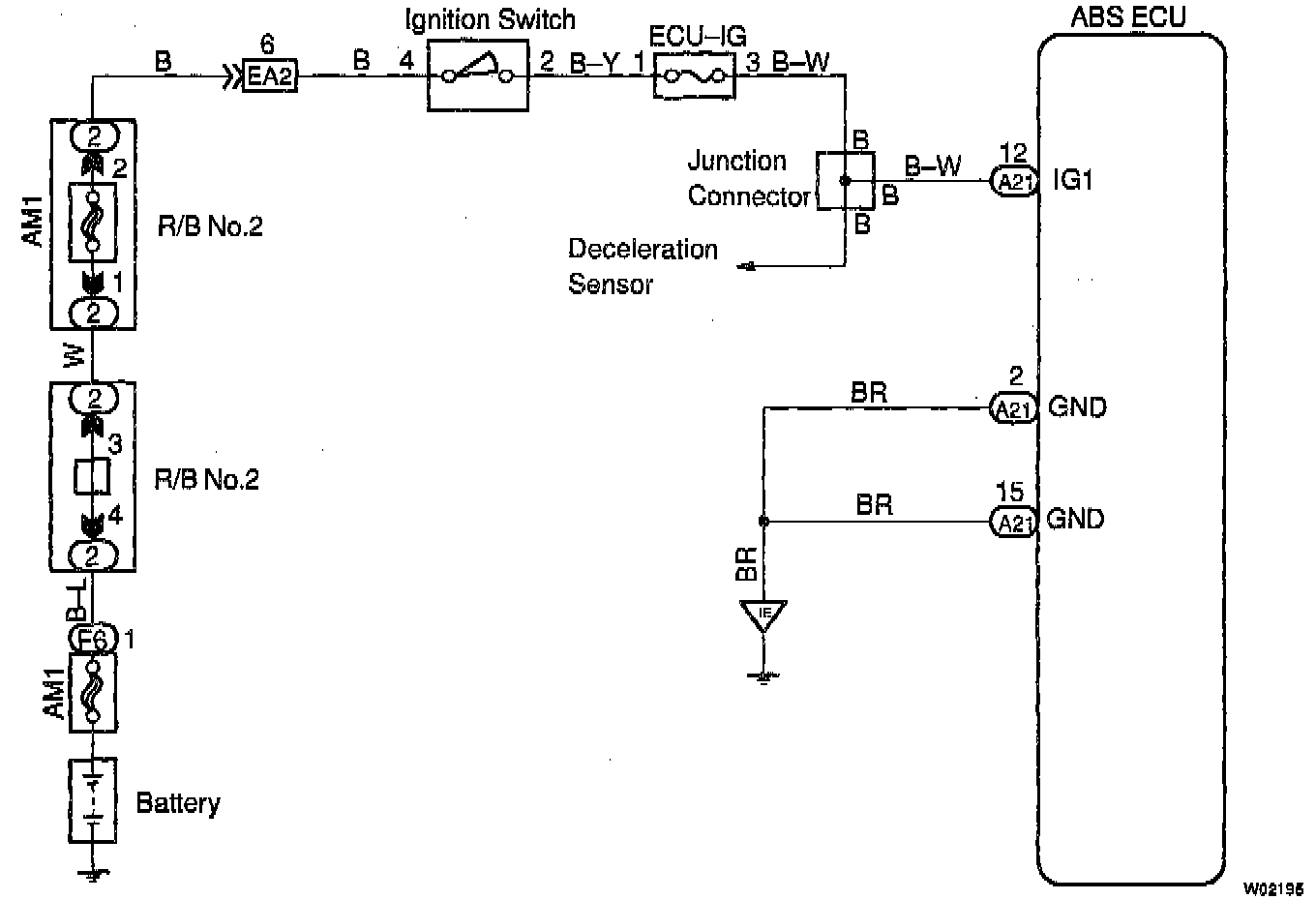

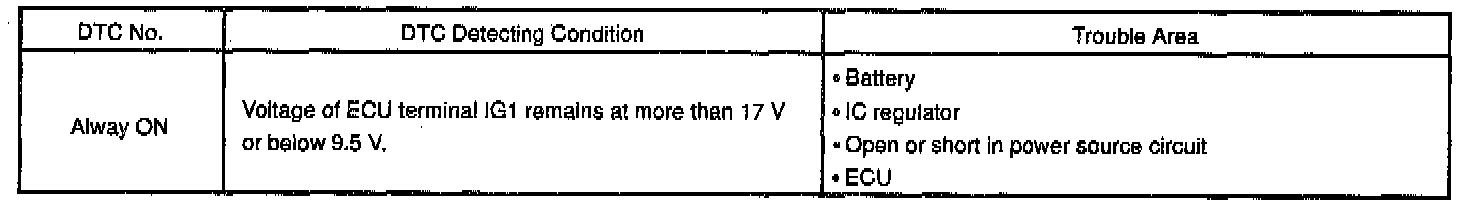

CIRCUIT DESCRIPTION
This is the power source for the Electronic Control Unit (ECU), hence the CPU, and the actuators.

FAIL SAFE FUNCTION
If trouble occurs in the power source circuit, the ECU cuts off current to the Anti-Lock Brake System (ABS) Control (Solenoid) Relay and prohibits ABS control.
