Hydraulic Control Assembly - Antilock Brakes: Service and Repair

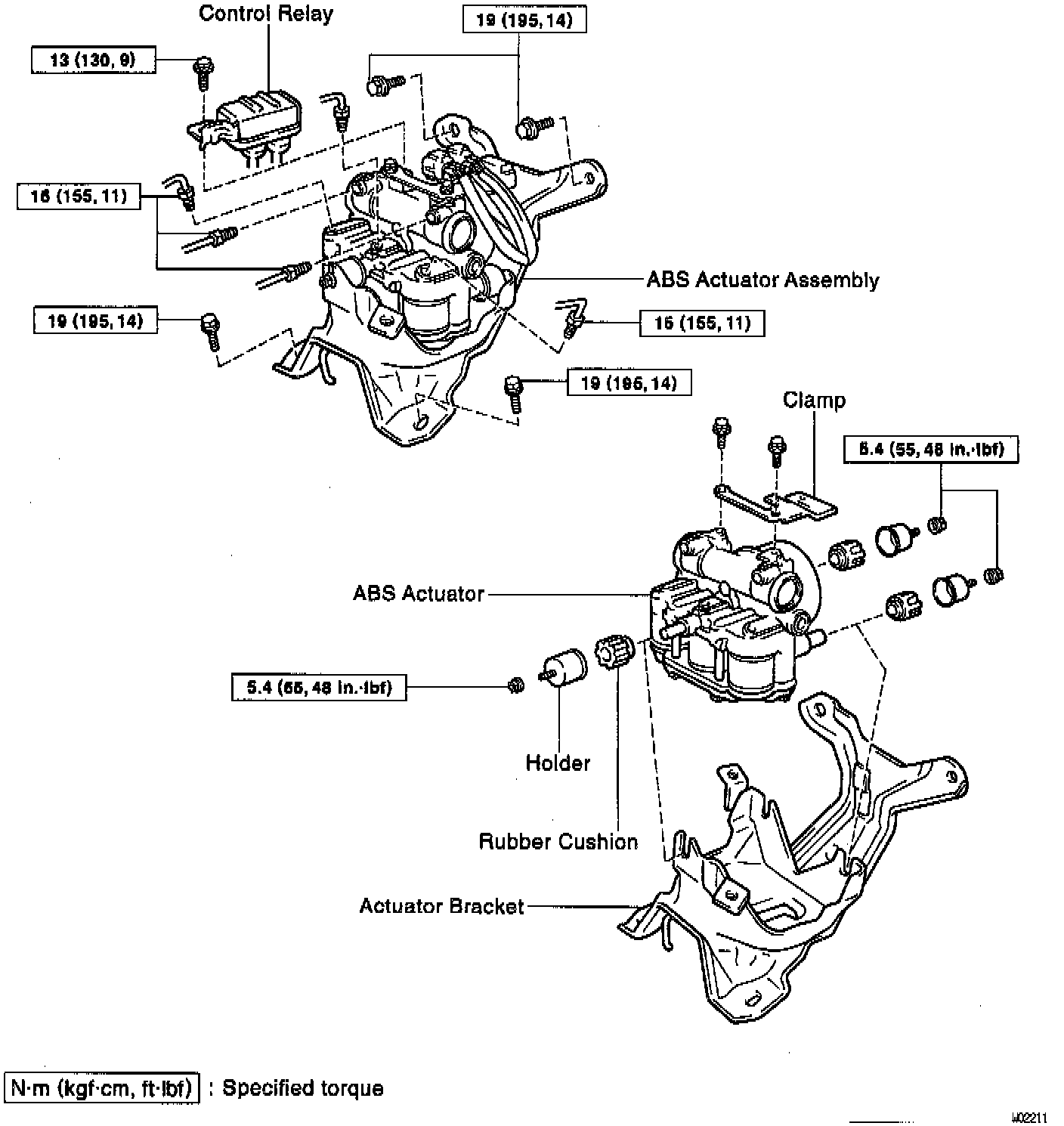

ABS Actuator Components:

REMOVAL
1. Remove Control Relay from Actuator bracket.
Torque: 13 Nm (9 ft. lbs.)

Disconnect Brake Lines From ABS Actuator:

2. Disconnect brake lines.
Using Special Service Tool (SST) # 09023 - 00100, disconnect the brake lines from the Anti-Lock Brake System (ABS) Actuator.
Torque: 15 Nm (11 ft. lbs.)
3. Remove ABS Actuator assembly.
(a) Disconnect the 2 connectors from the Actuator.
(b) Remove the 4 bolts and ABS Actuator assembly.
Torque: 19 Nm (14 ft. lbs.)
4. Remove ABS Actuator.
(a) Remove the 3 nuts and ABS Actuator from the Actuator bracket.
Torque: 5.4 Nm (48 inch lbs.)
(b) Remove the 3 holders and cushions from the ABS Actuator.

INSTALLATION
Installation is in the reverse order of removal.
After installation, fill brake reservoir with brake fluid, bleed brake system. Service and Repair
Check for leaks.
