Lexus Truck
>>
1997
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1780
>>
Transmission Control System
Transmission Control System

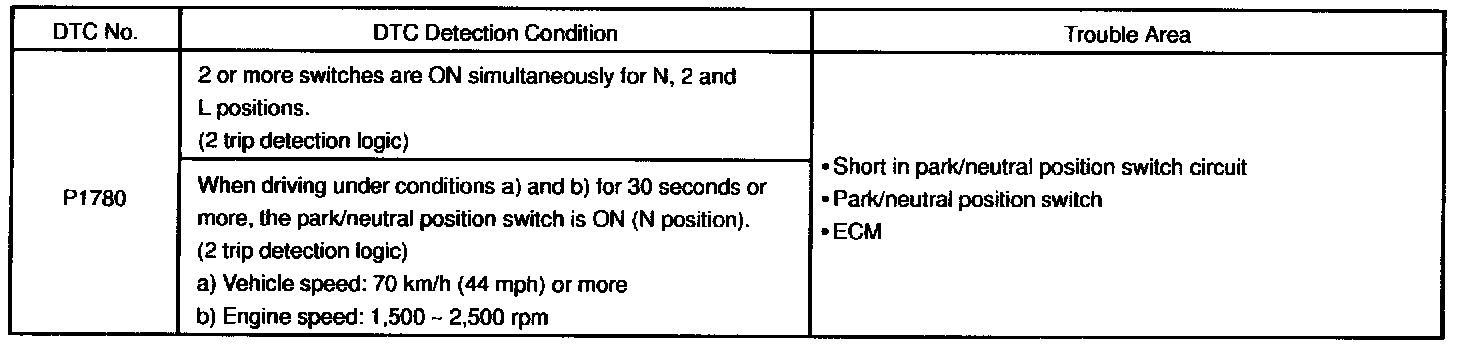

DETECTING CONDITION

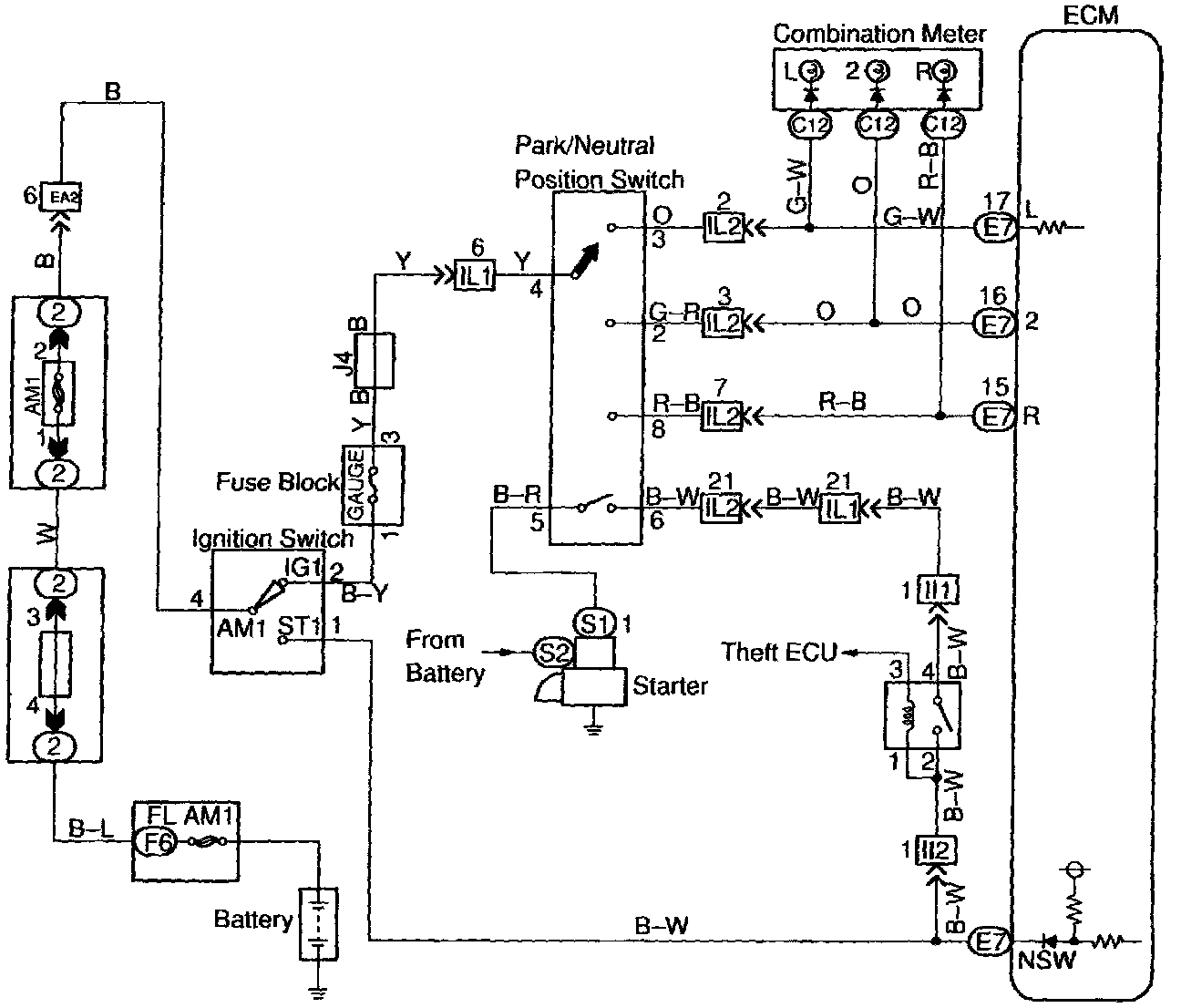

WIRING DIAGRAM

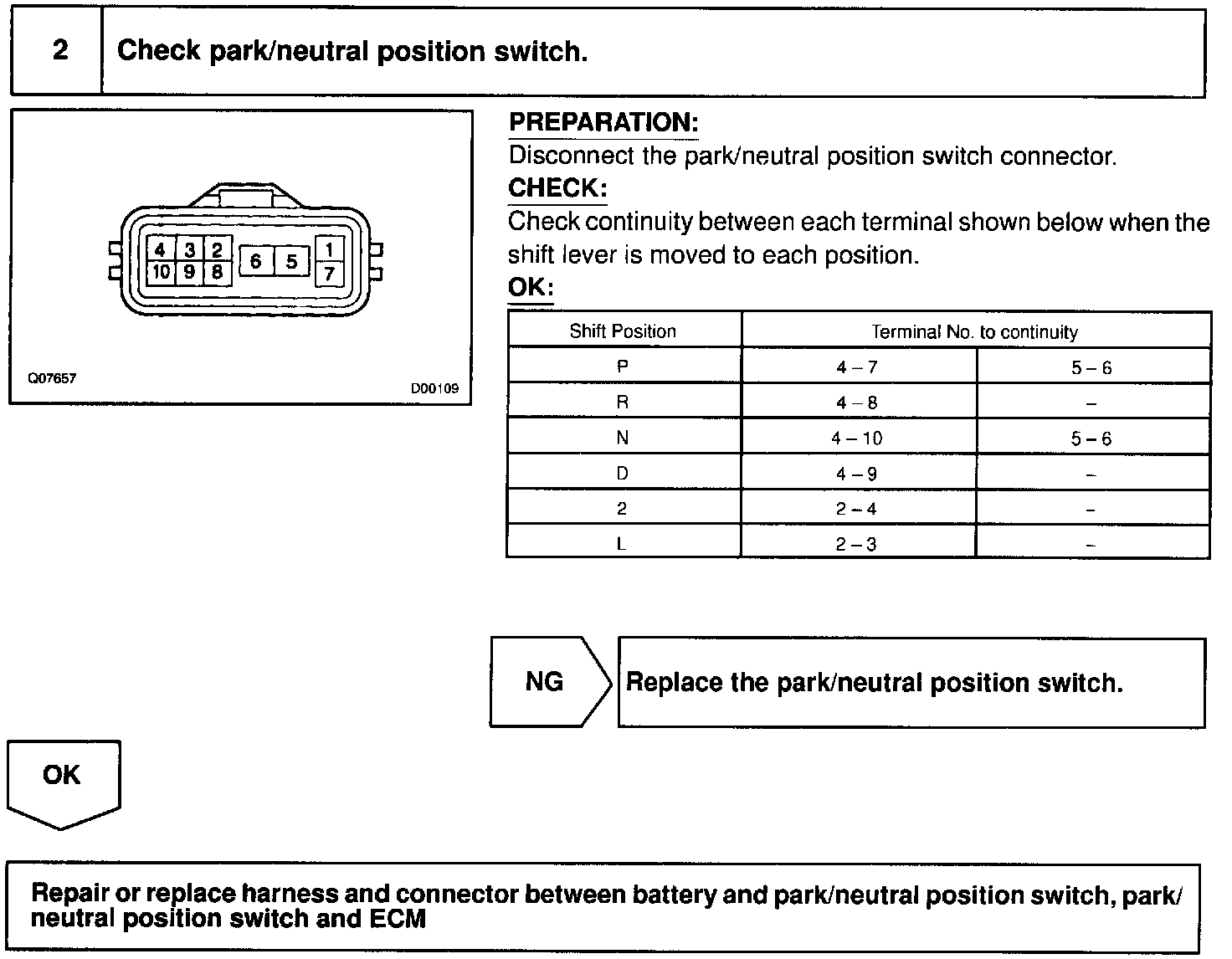

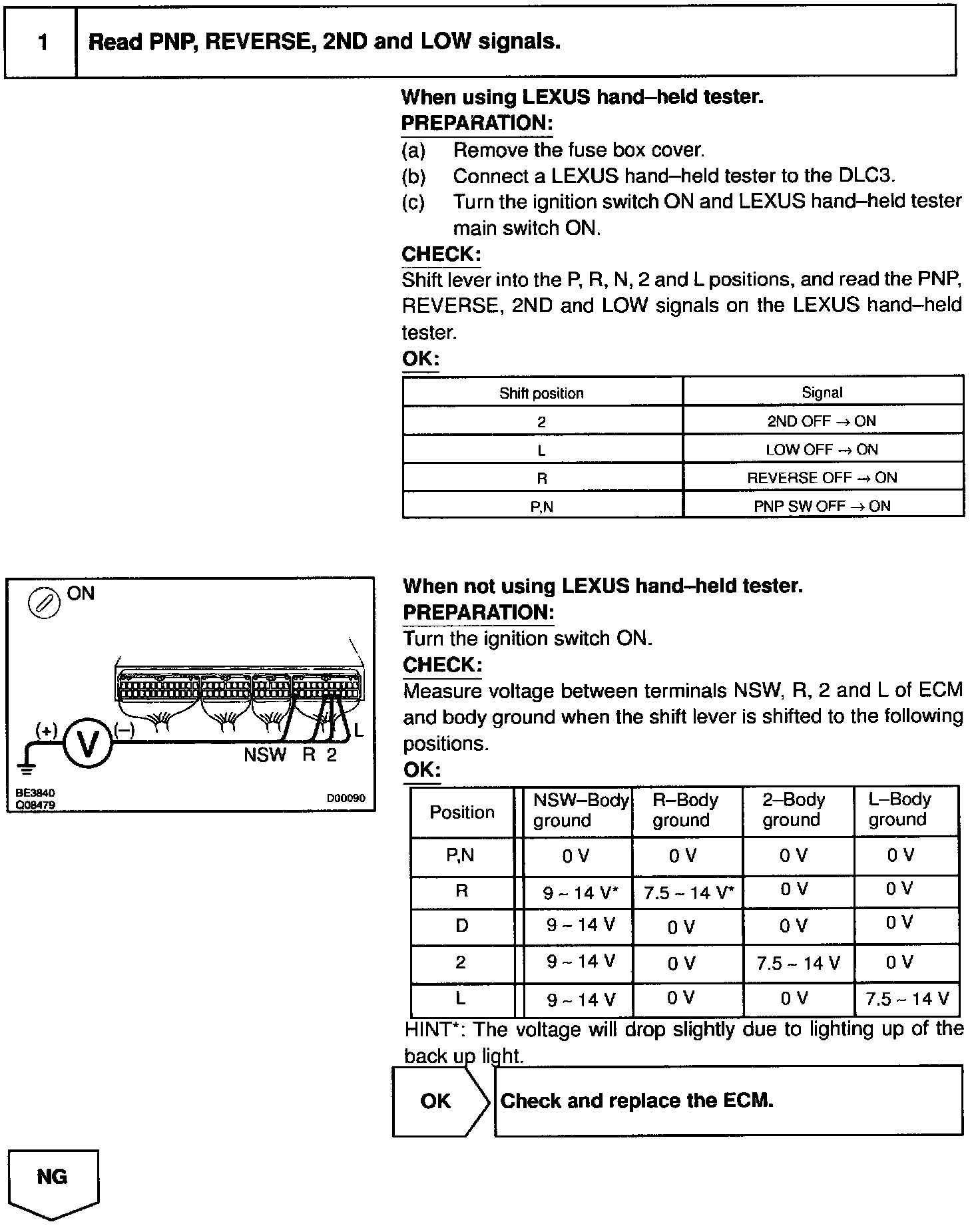

INSPECTION PROCEDURE
