Home >> Lexus Truck >> 1996 >> LX 450 L6-4.5L (1FZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Diagrams >> Front Axle

Front Axle

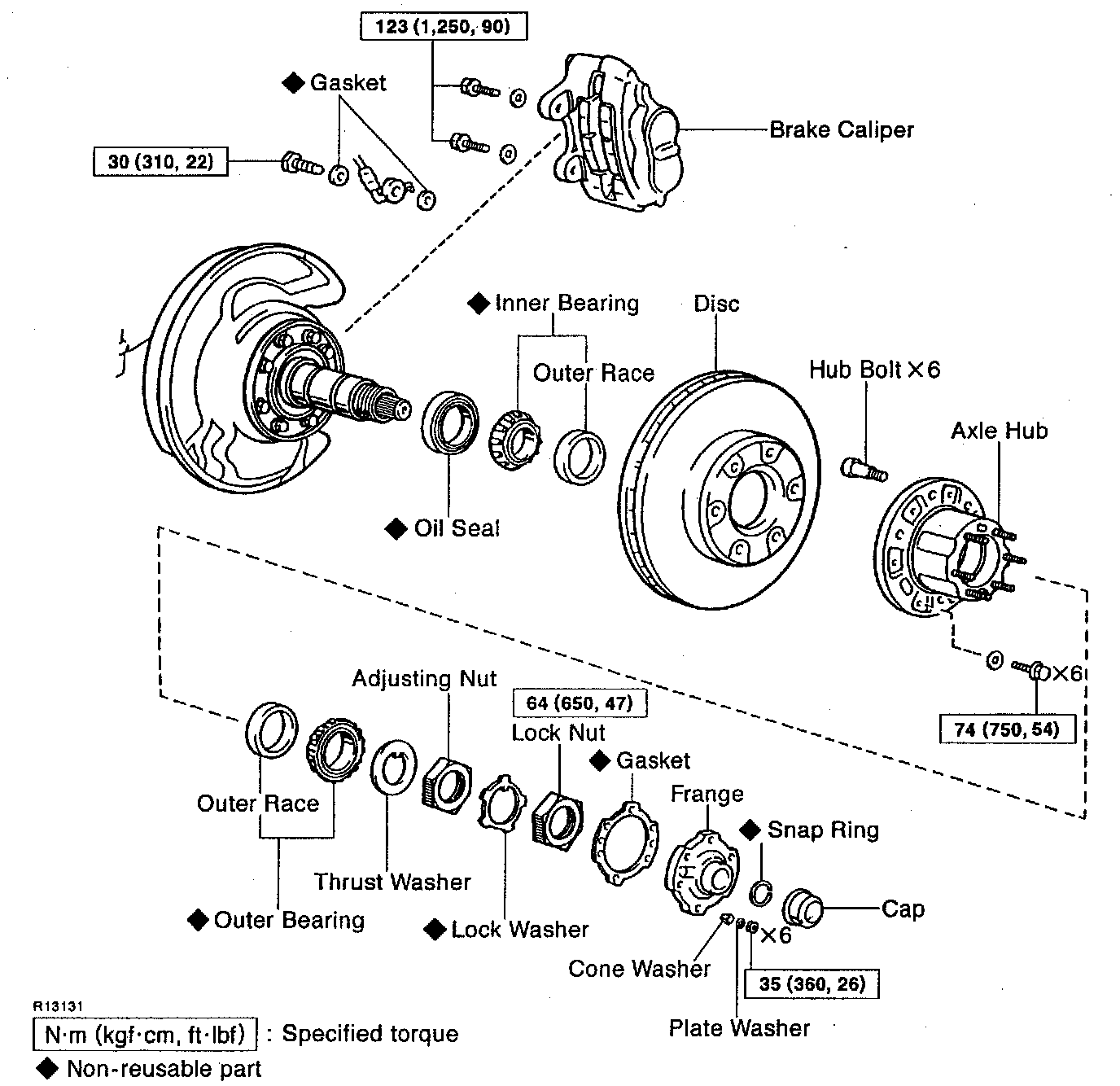

Front Axle Hub, Brake Caliper, Inner-Outer Bearings:
