Shift Solenoid: Testing and Inspection

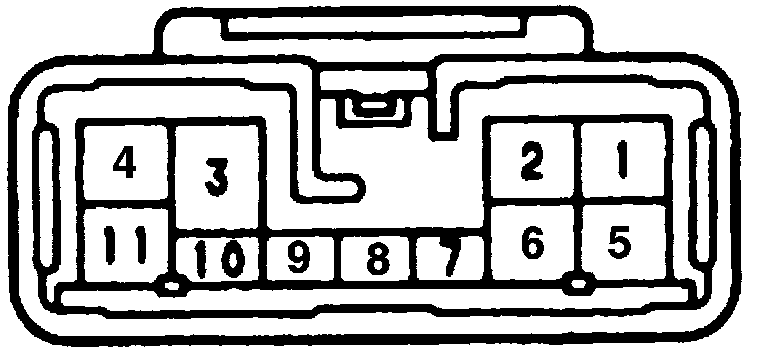

Fig. 6 Key Interlock Solenoid Connector.:
Disconnect the key interlock solenoid and, using an ohmmeter, measure the resistance between terminals 7 and 8, Fig. 6. Resistance should be 12-17 Ohms.
Disconnect the key interlock solenoid and, using an ohmmeter, measure the resistance between terminals 7 and 8, Fig. 6. Resistance should be 12-17 Ohms.
