Lexus Truck
>>
1996
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

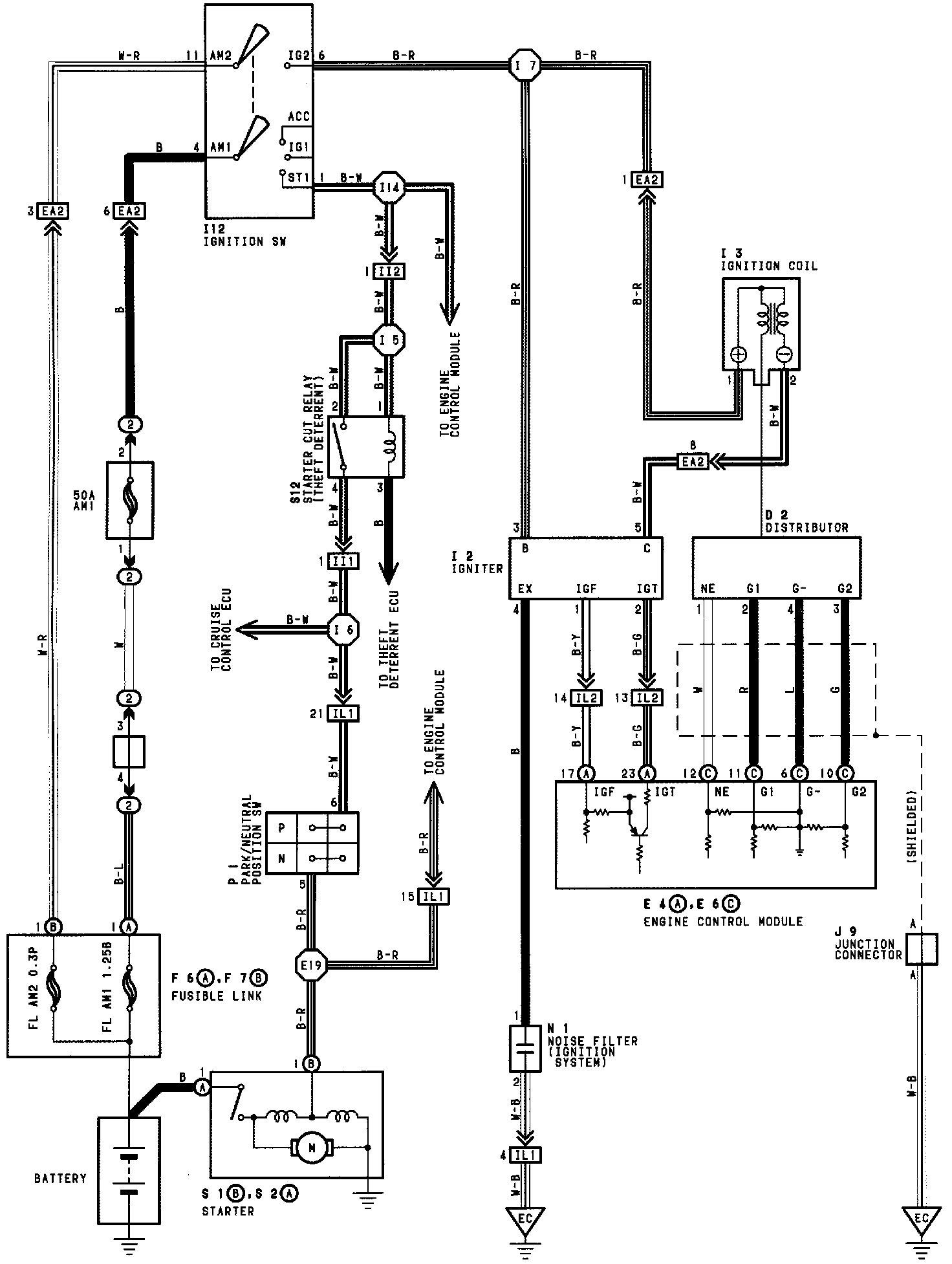

Starting And Ignition:
