Lexus Truck
>>
1996
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

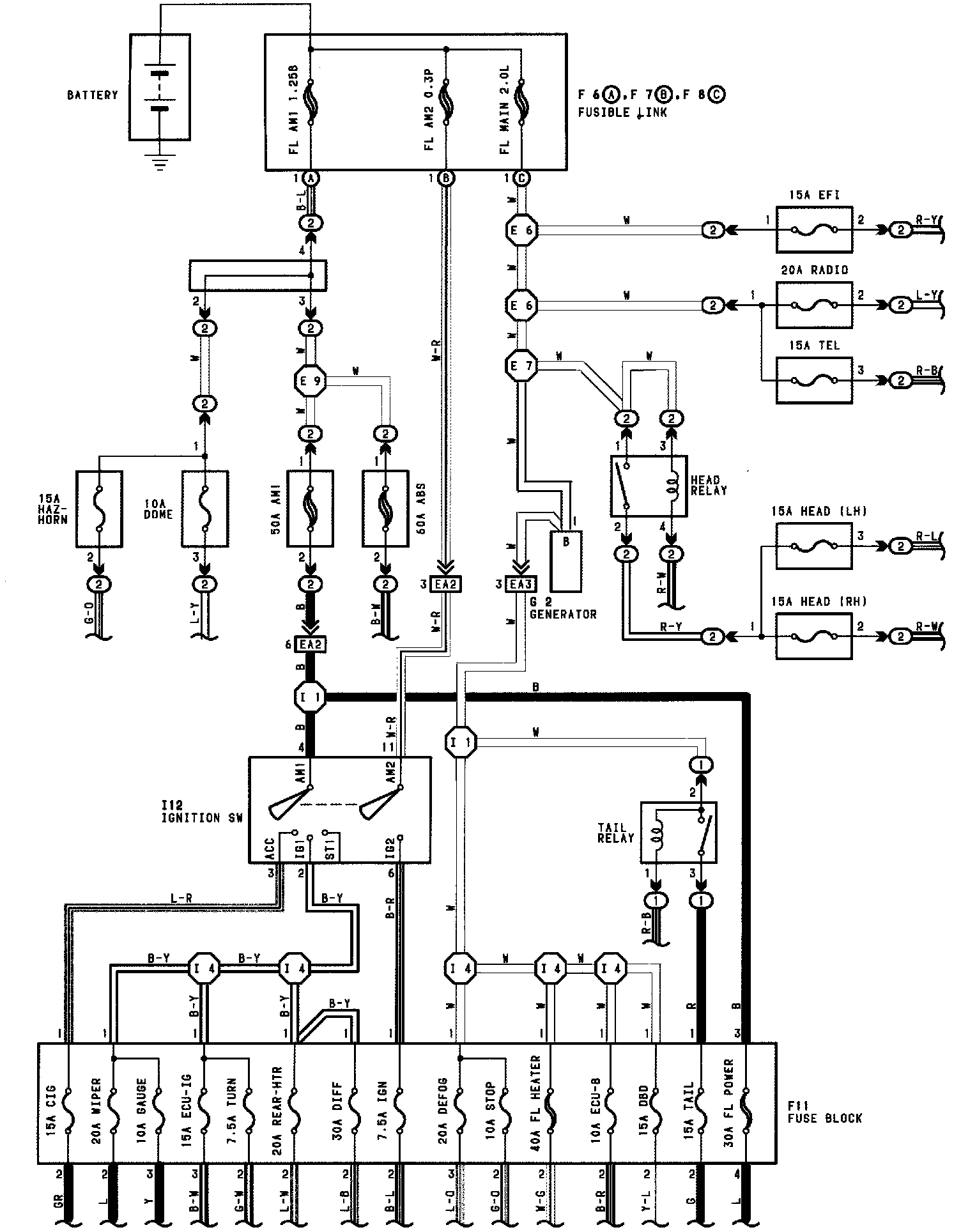

Power Source Diagrams
Power Source Diagrams
Power Source:
