Lexus Truck
>>
1996
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Engine Compartment
Engine Compartment

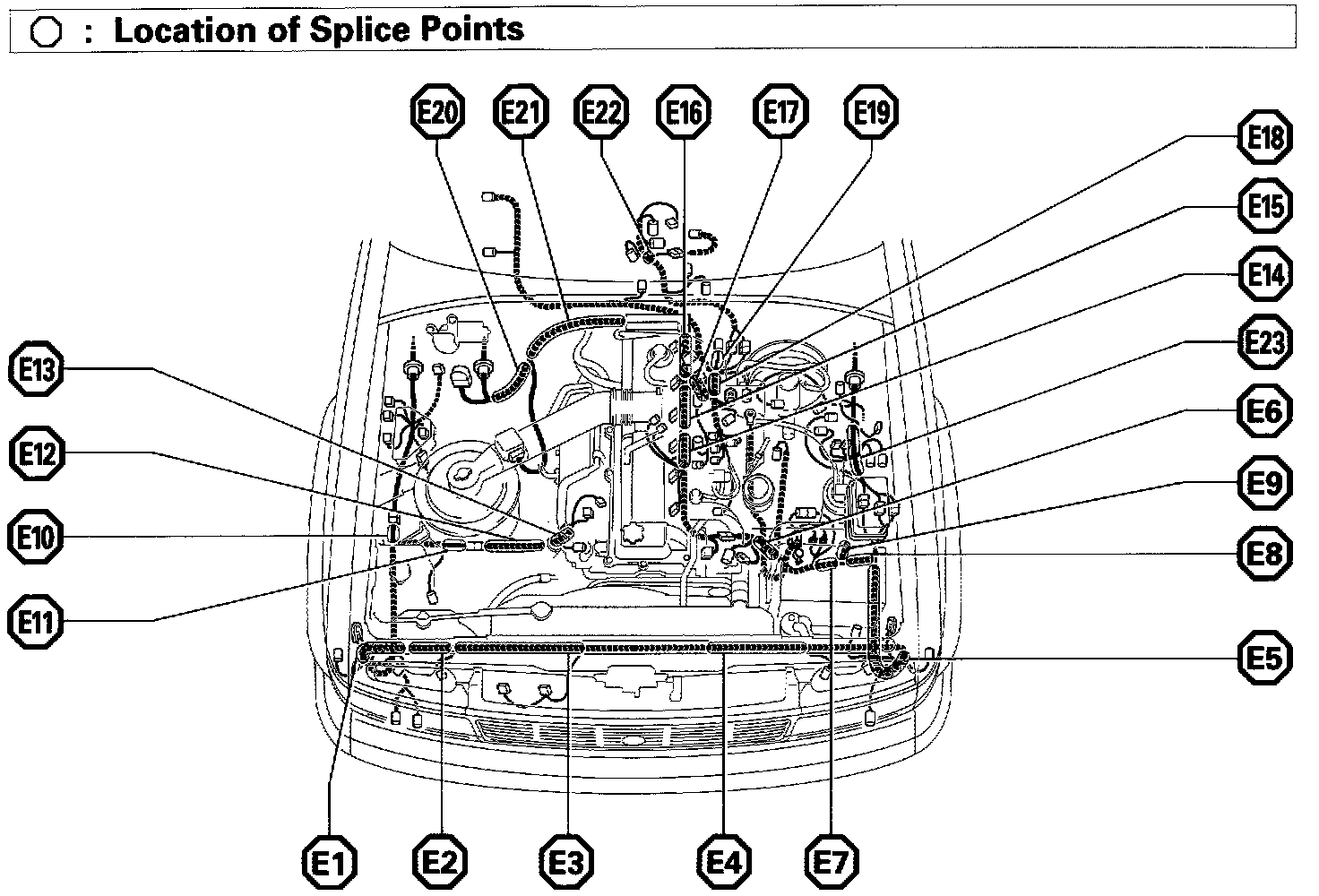

Location Of Splice Points (Fig 30):
