Lexus Truck
>>
1996
>>
LX 450 L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays, Relay Boxes, Modules and Junction Boxes
>>
Instrument Panel / Center Console
Instrument Panel / Center Console

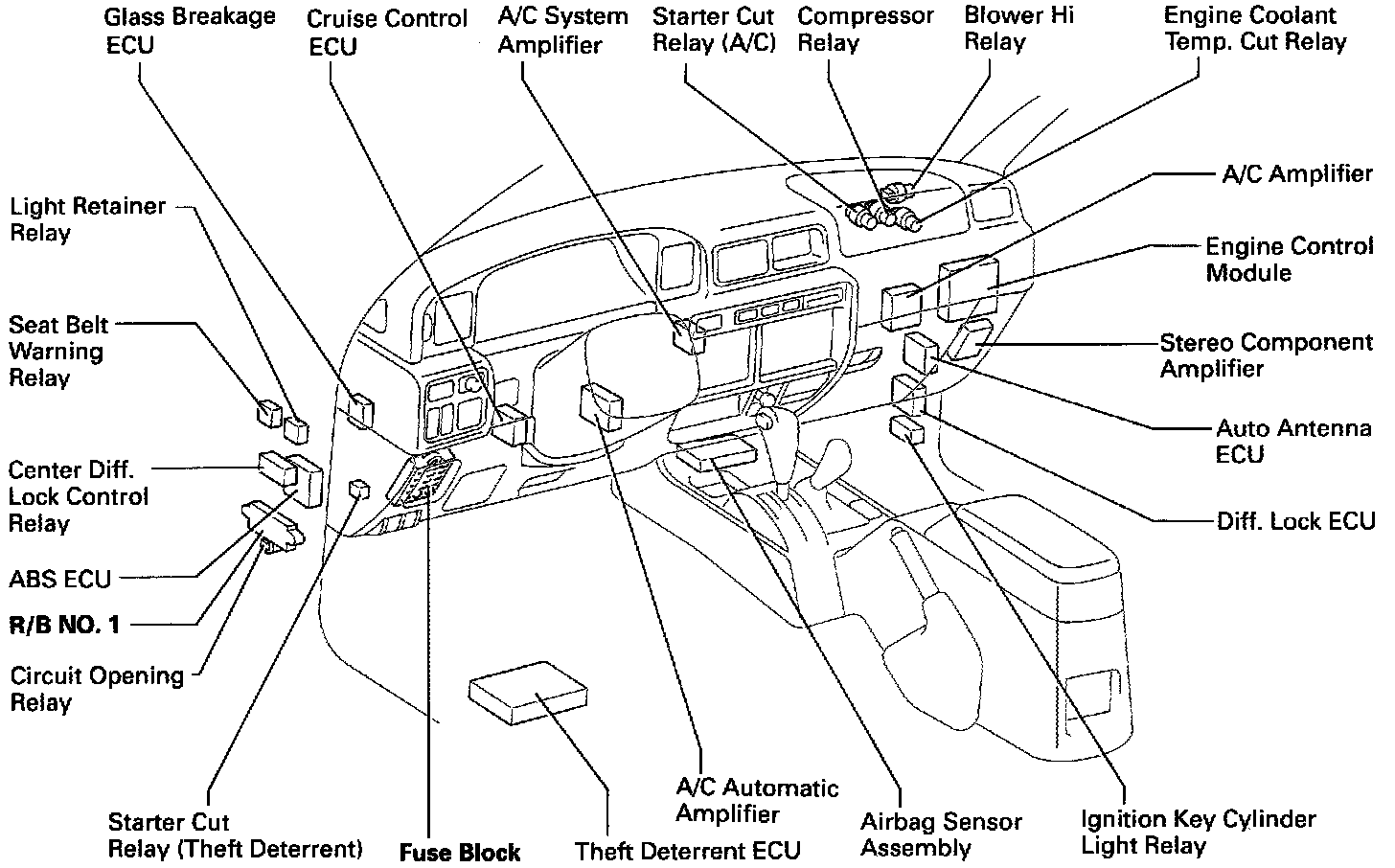

Instrument Panel (Fig 19):
