Ride Height Sensor, Suspension Control
>>

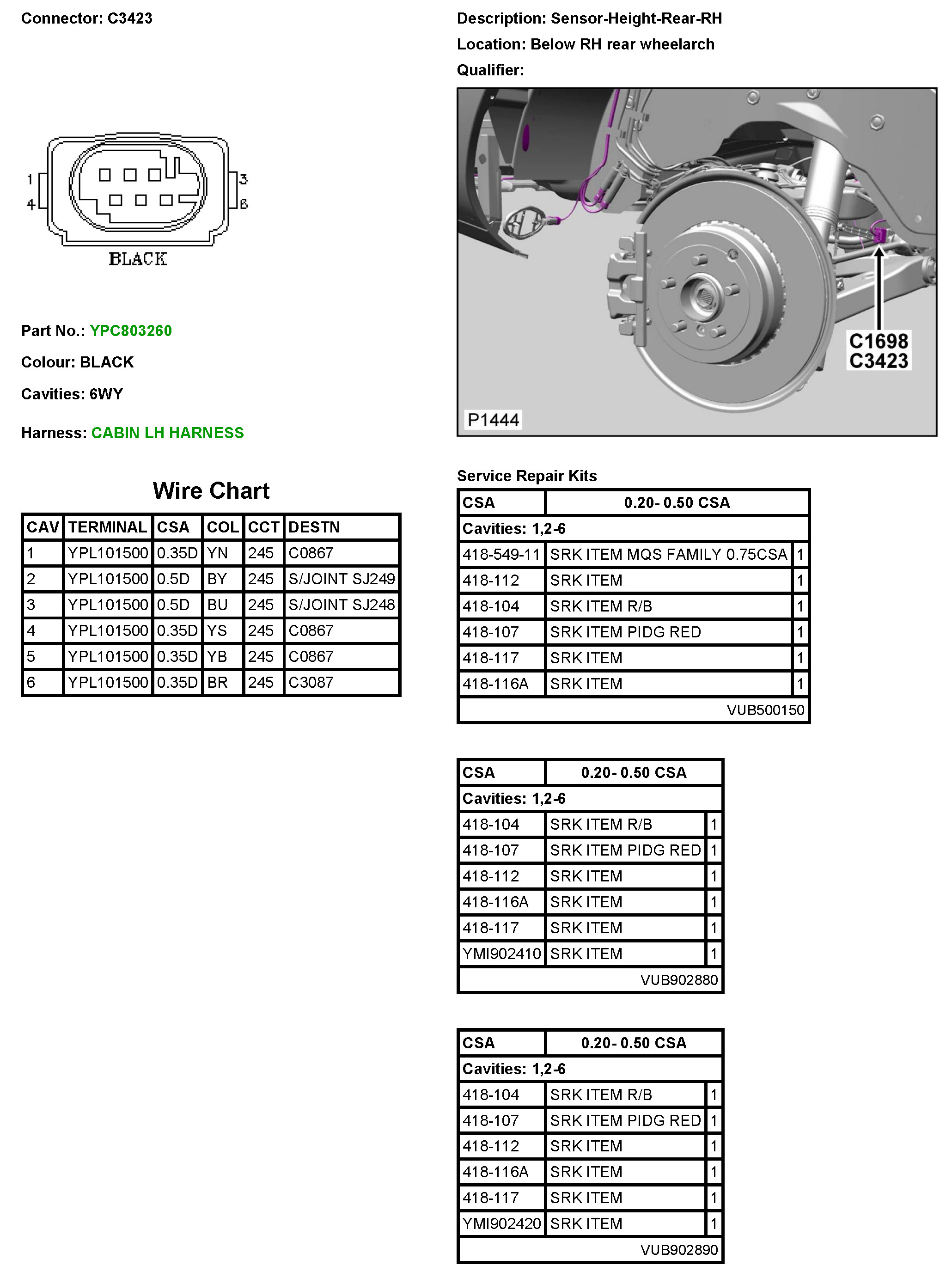

C3423 Sensor-Height-Rear-RH
C3423 Sensor-Height-Rear-RH
C3423
