Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>

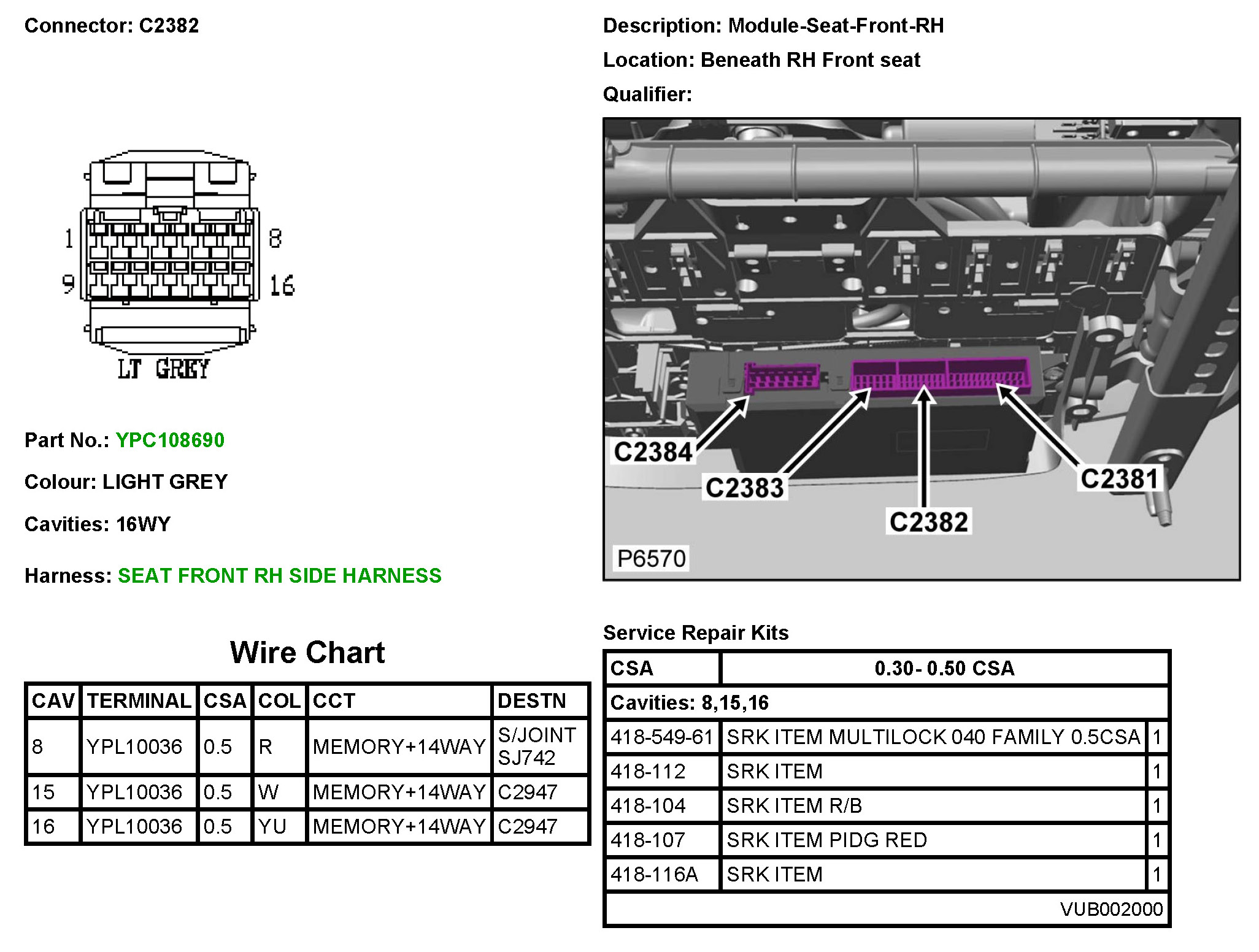

C2382 Module-Seat-Front-RH
C2382 Module-Seat-Front-RH
C2382
