Home
>>
Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

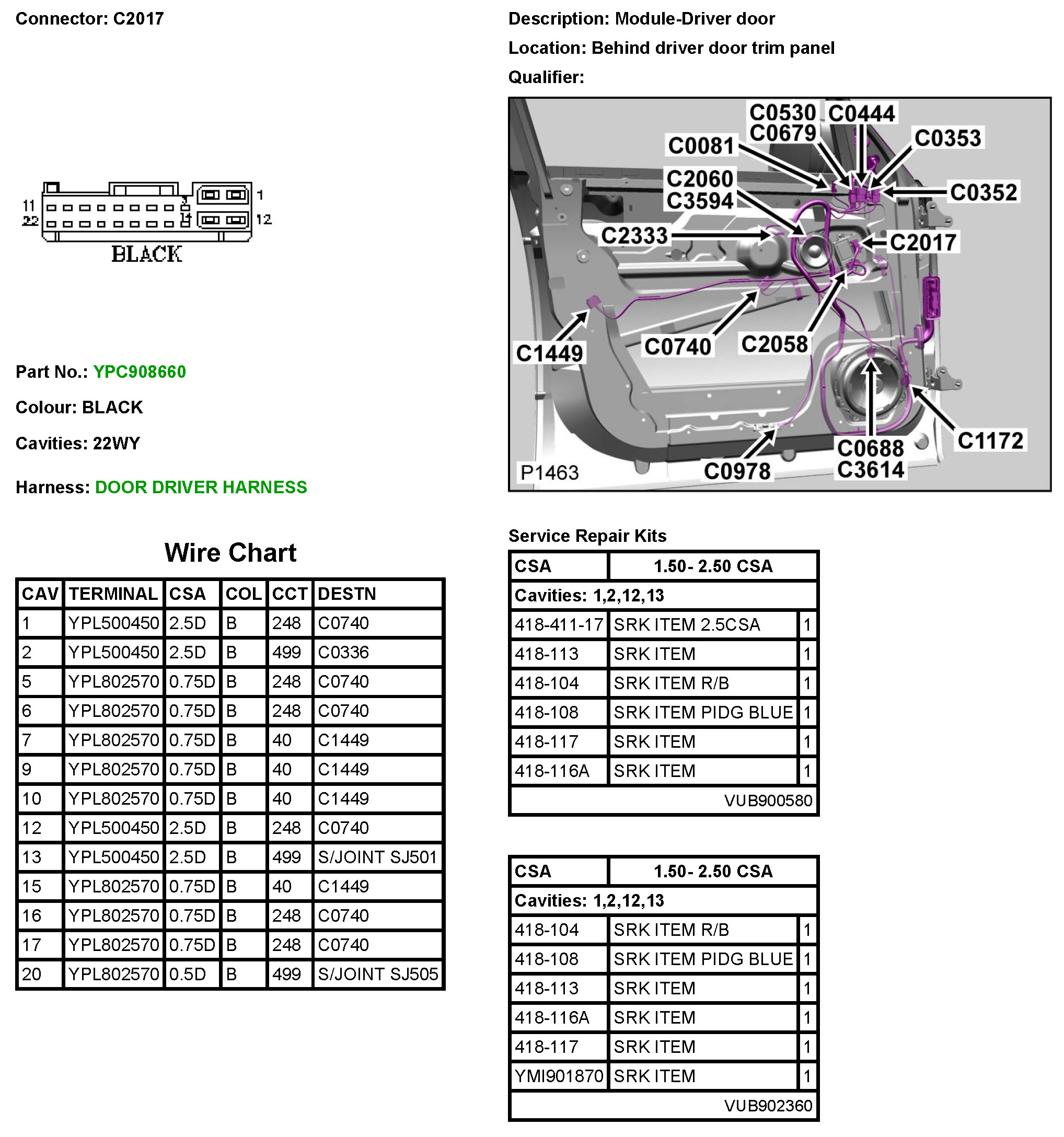

C2017 Module-Driver Door
C2017 Module-Driver Door
C2017
