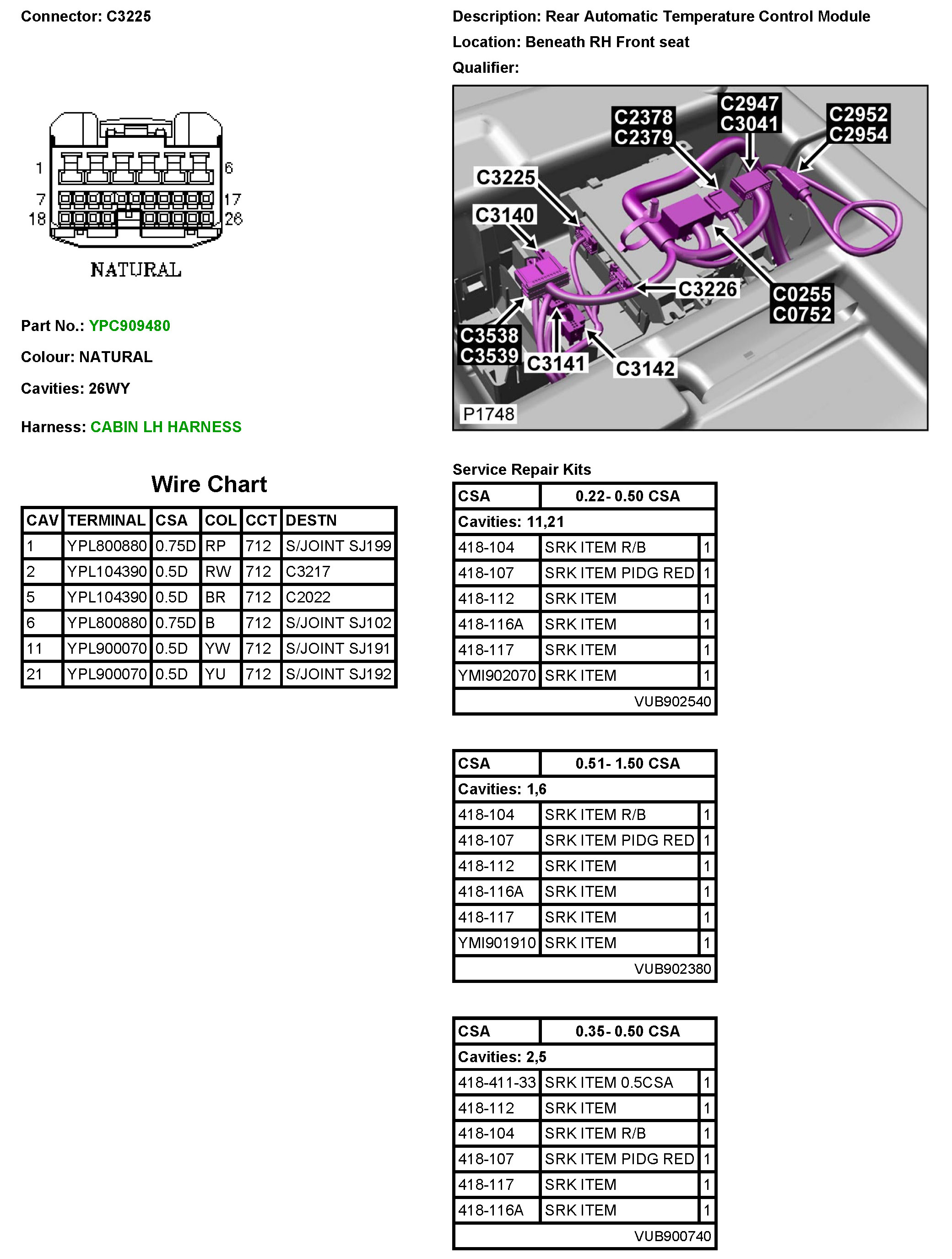

C3225 Rear Automatic Temperature Control Module
C3225 Rear Automatic Temperature Control Module
C3225
