Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Position Sensor
>>

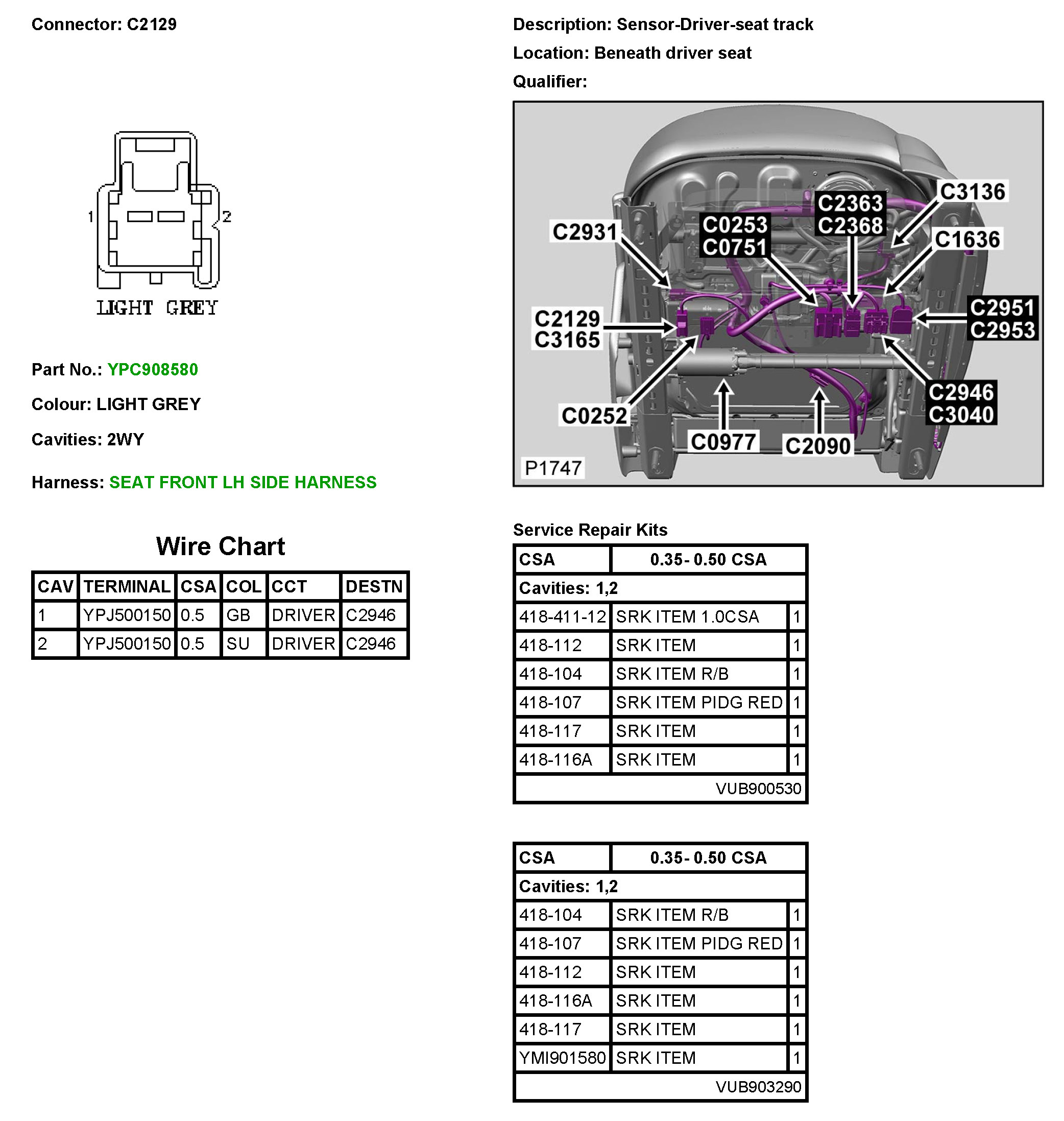

C2129 Sensor-Driver-Seat Track
C2129 Sensor-Driver-Seat Track
C2129
