Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Radio Tuner >> C3499 Module-Tuner-DAB

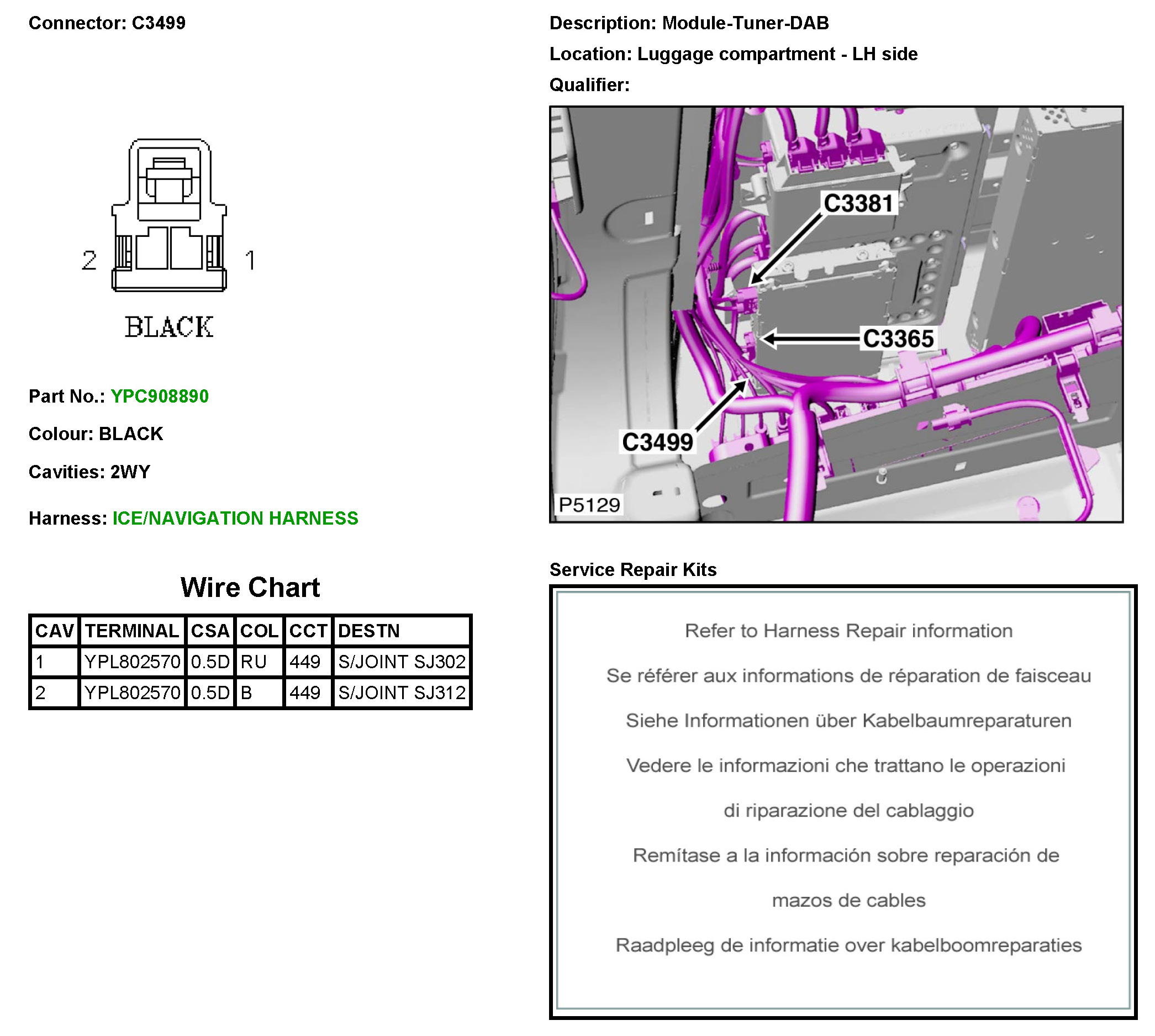

C3499 Module-Tuner-DAB



C3499
