Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Head Restraint Control Module >> C1418 Motor-Head Restraint-RH

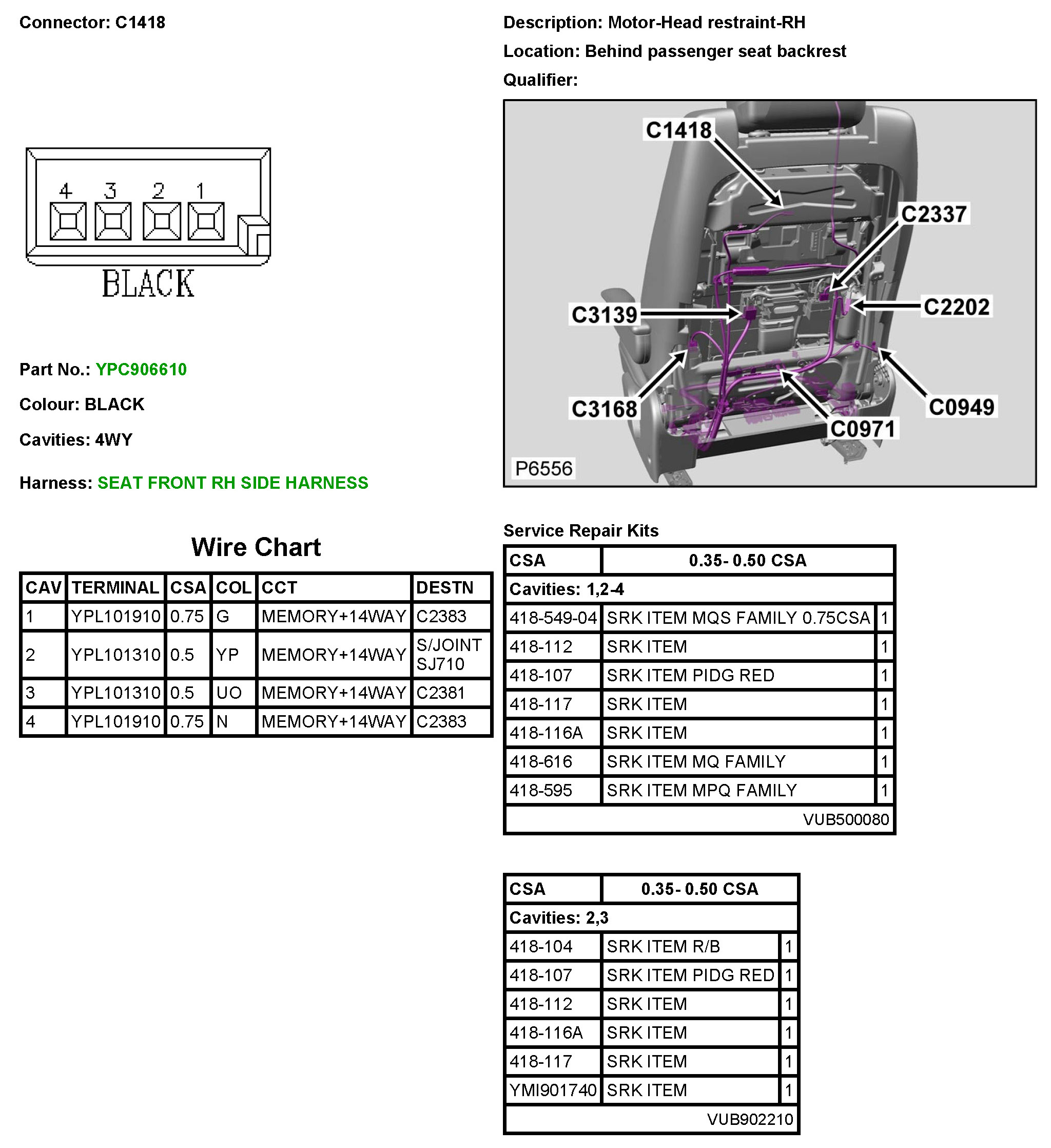

C1418 Motor-Head Restraint-RH



C1418
