Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>

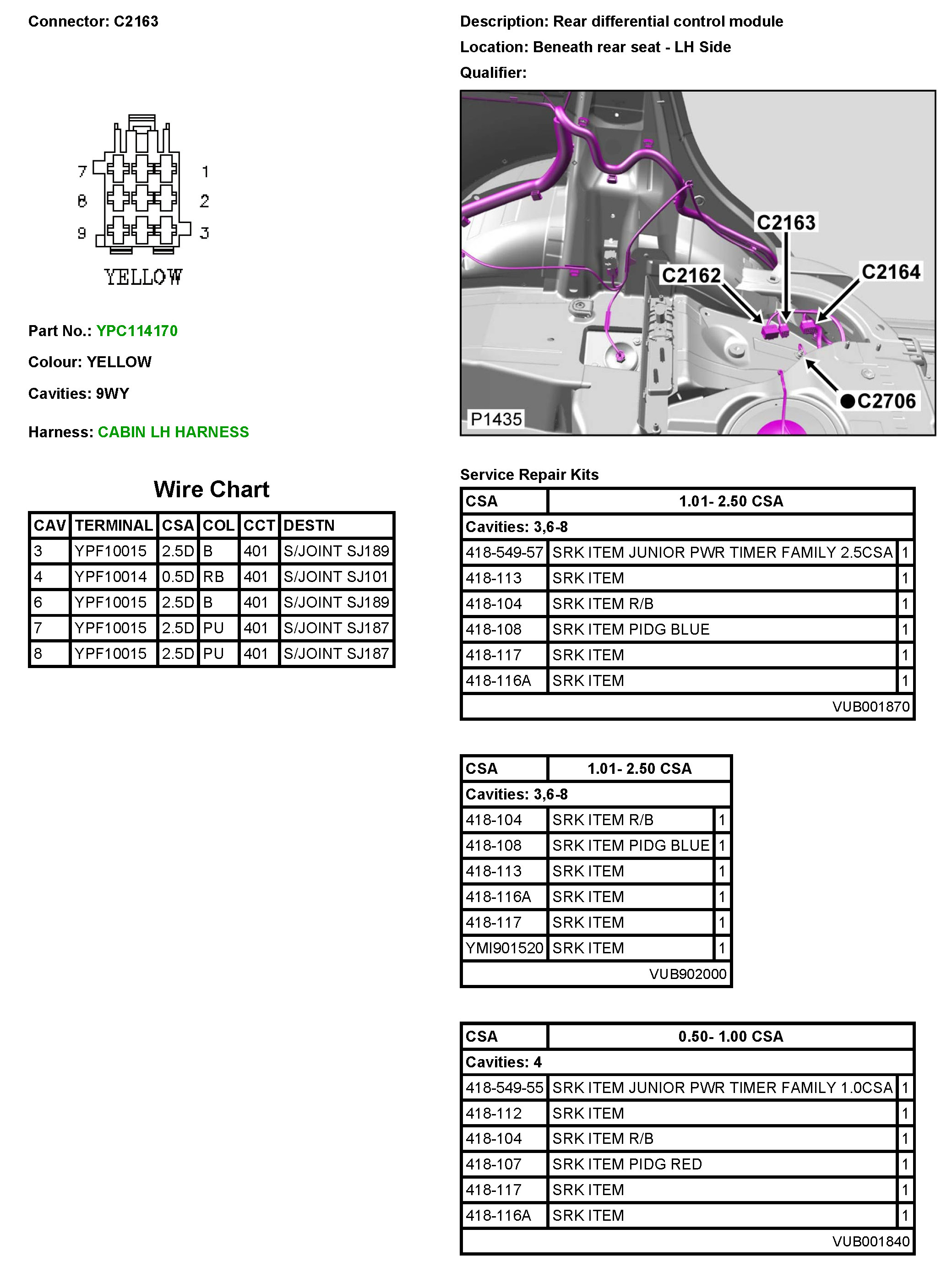

C2163 Rear Differential Control Module
C2163 Rear Differential Control Module
C2163
