Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Conditioning Switch
>>

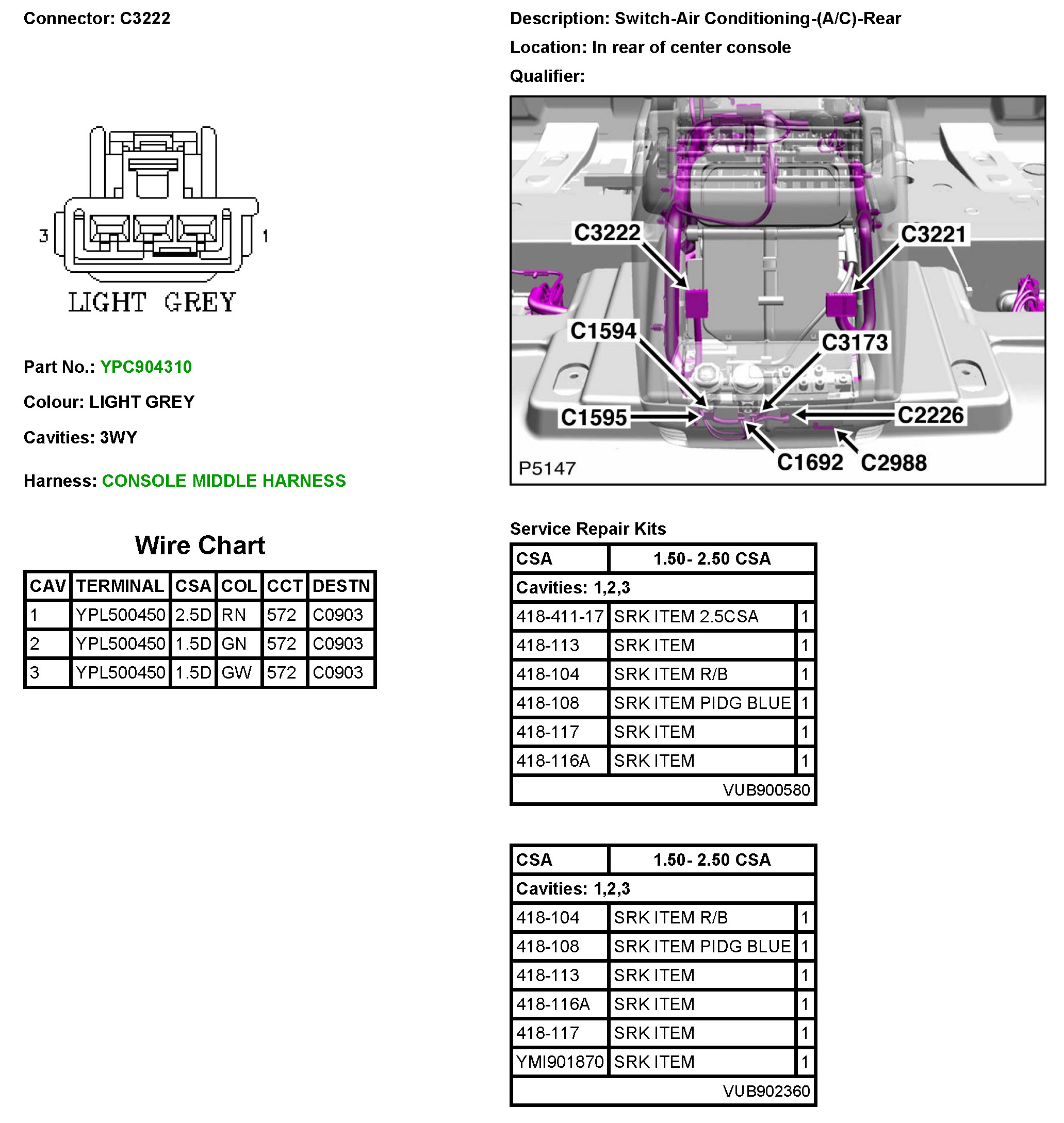

C3222 Switch-Air Conditioning-(A/C)-Rear
C3222 Switch-Air Conditioning-(A/C)-Rear
C3222
