Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Mounted Controls Communication Module
>>

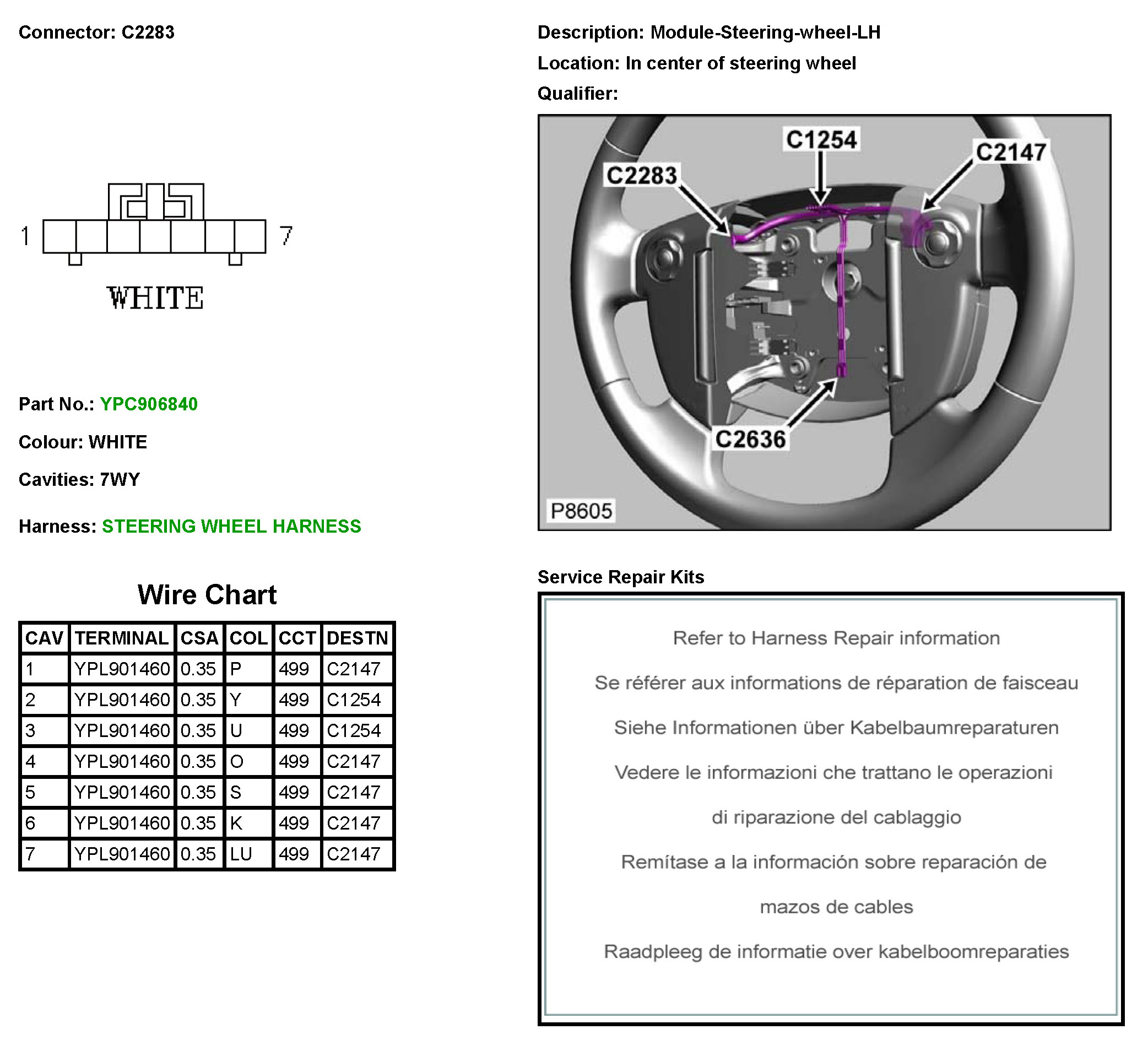

C2283 Module-Steering-wheel-LH

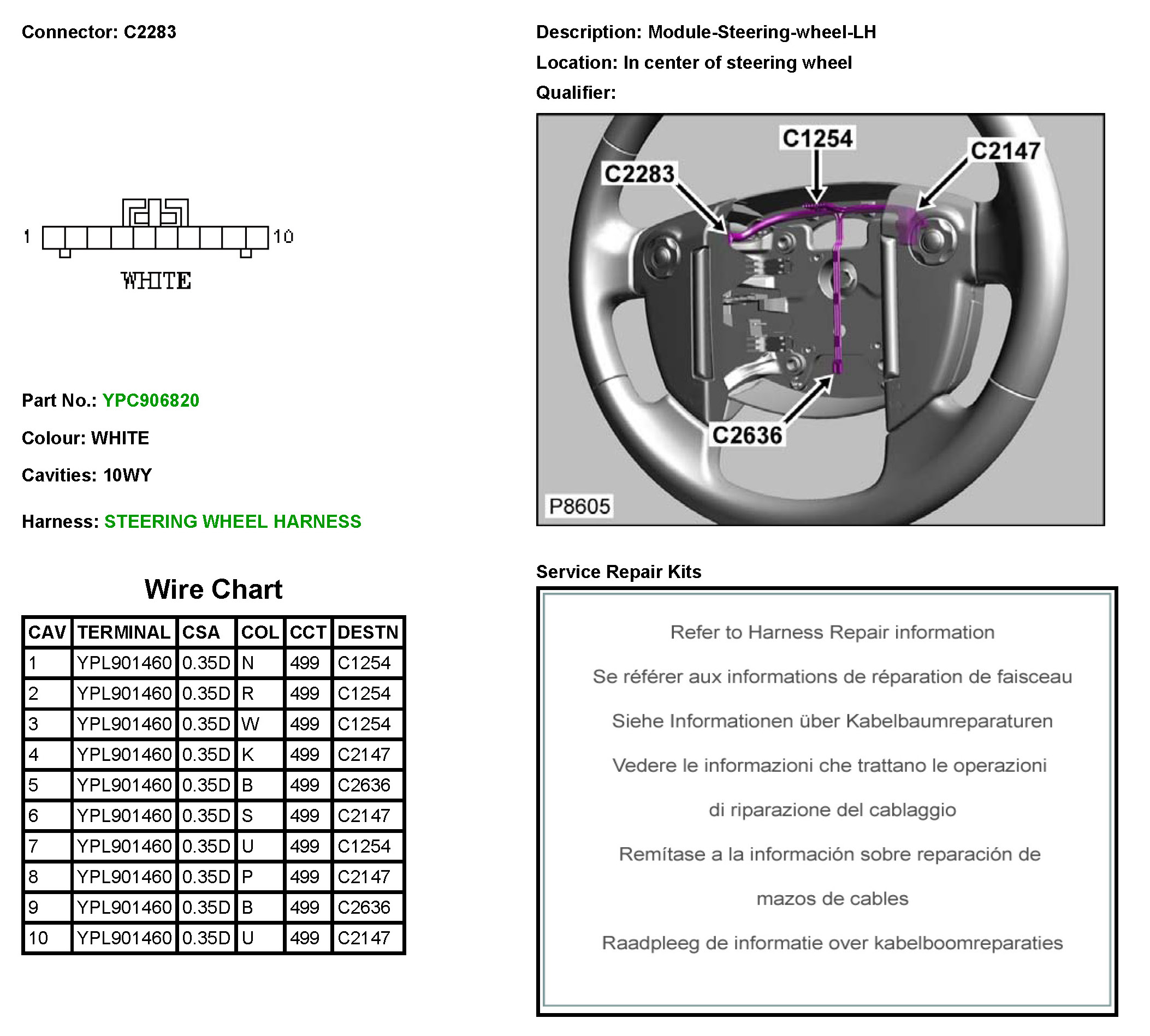

C2283 Module-Steering-wheel-LH
C2283
C2283
