Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

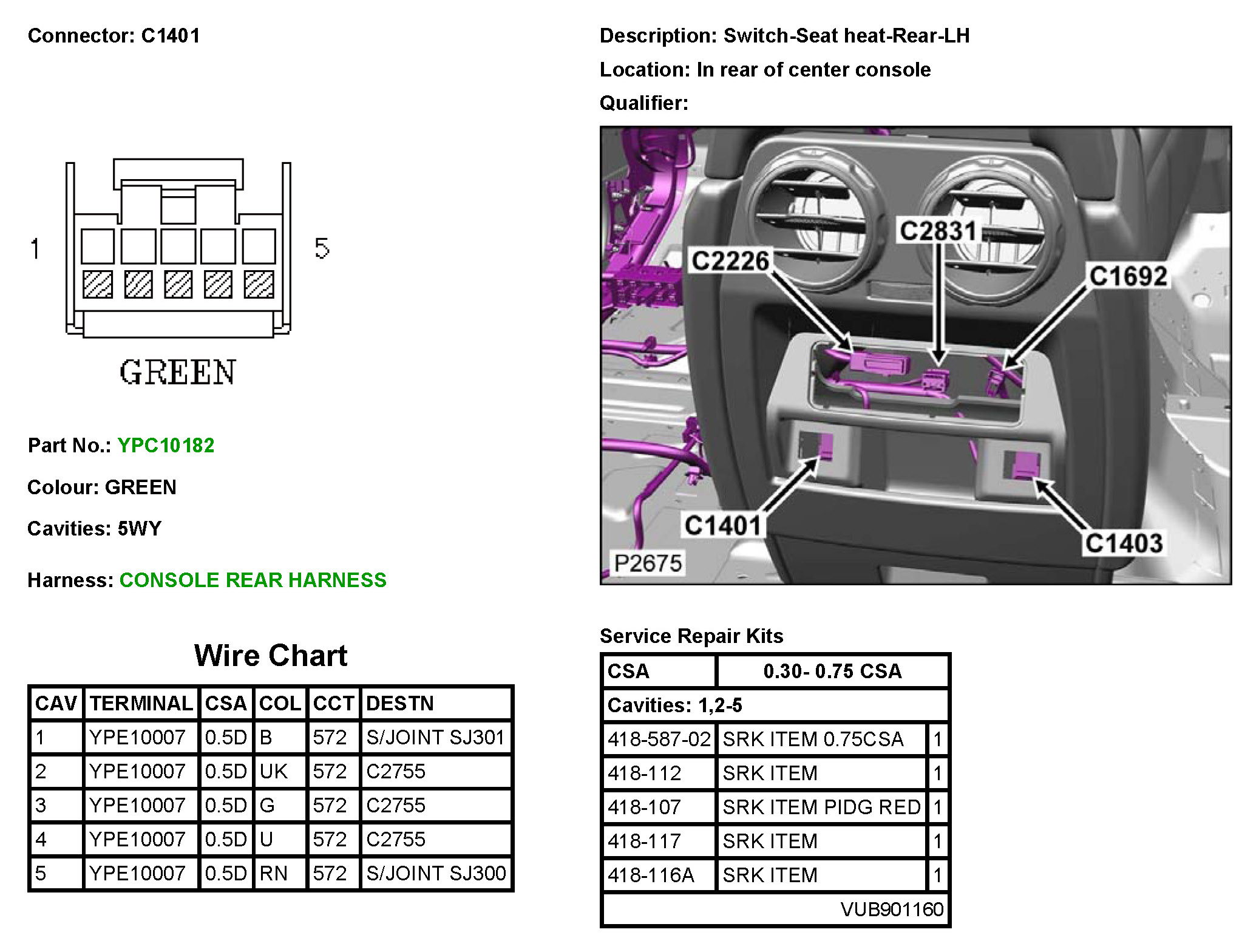

C1401 Switch-Seat Heat-Rear-LH
C1401 Switch-Seat Heat-Rear-LH
C1401
