Seat Temperature Control Module
>>

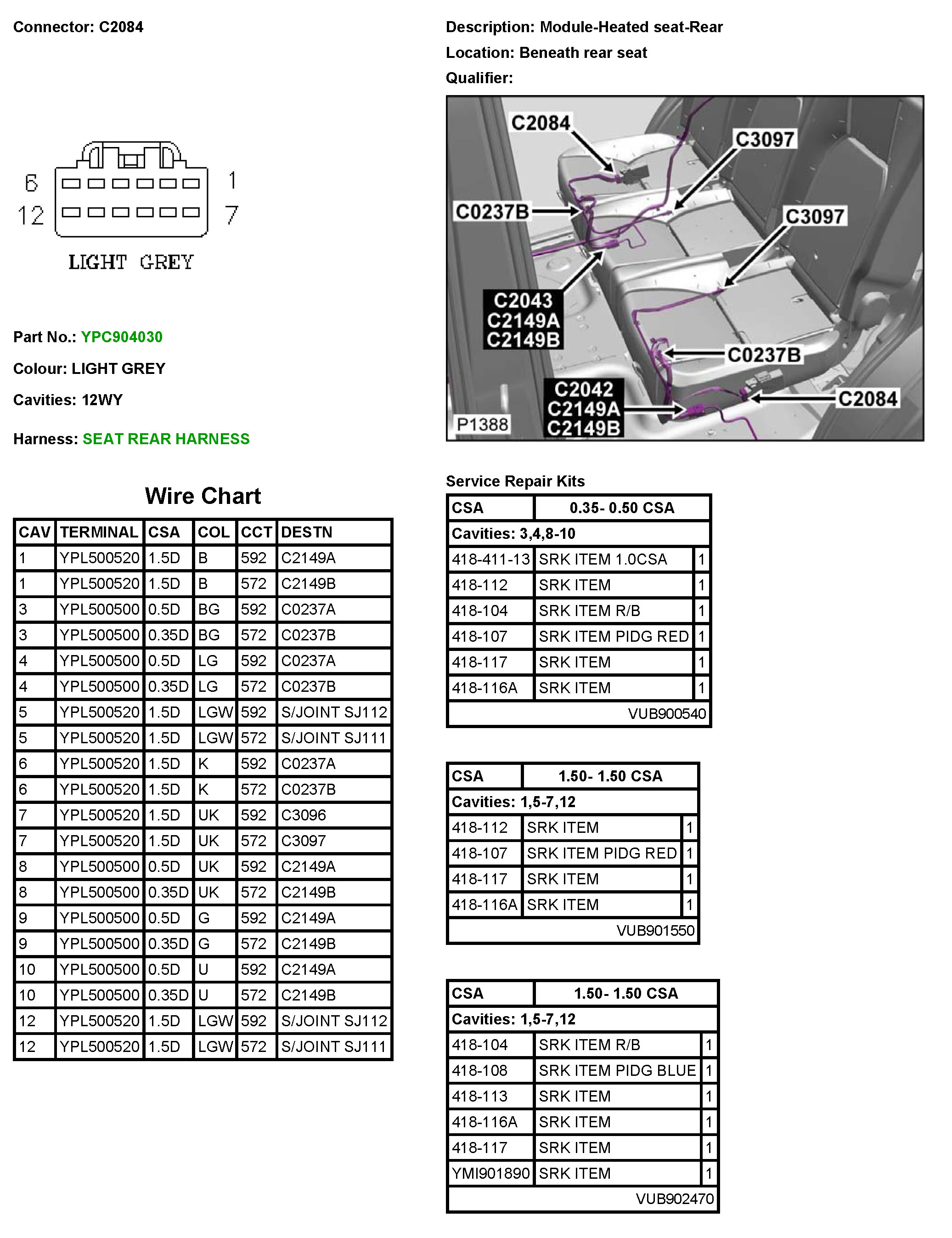

C2084 Module-Heated Seat-Rear
C2084 Module-Heated Seat-Rear
C2084
