Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

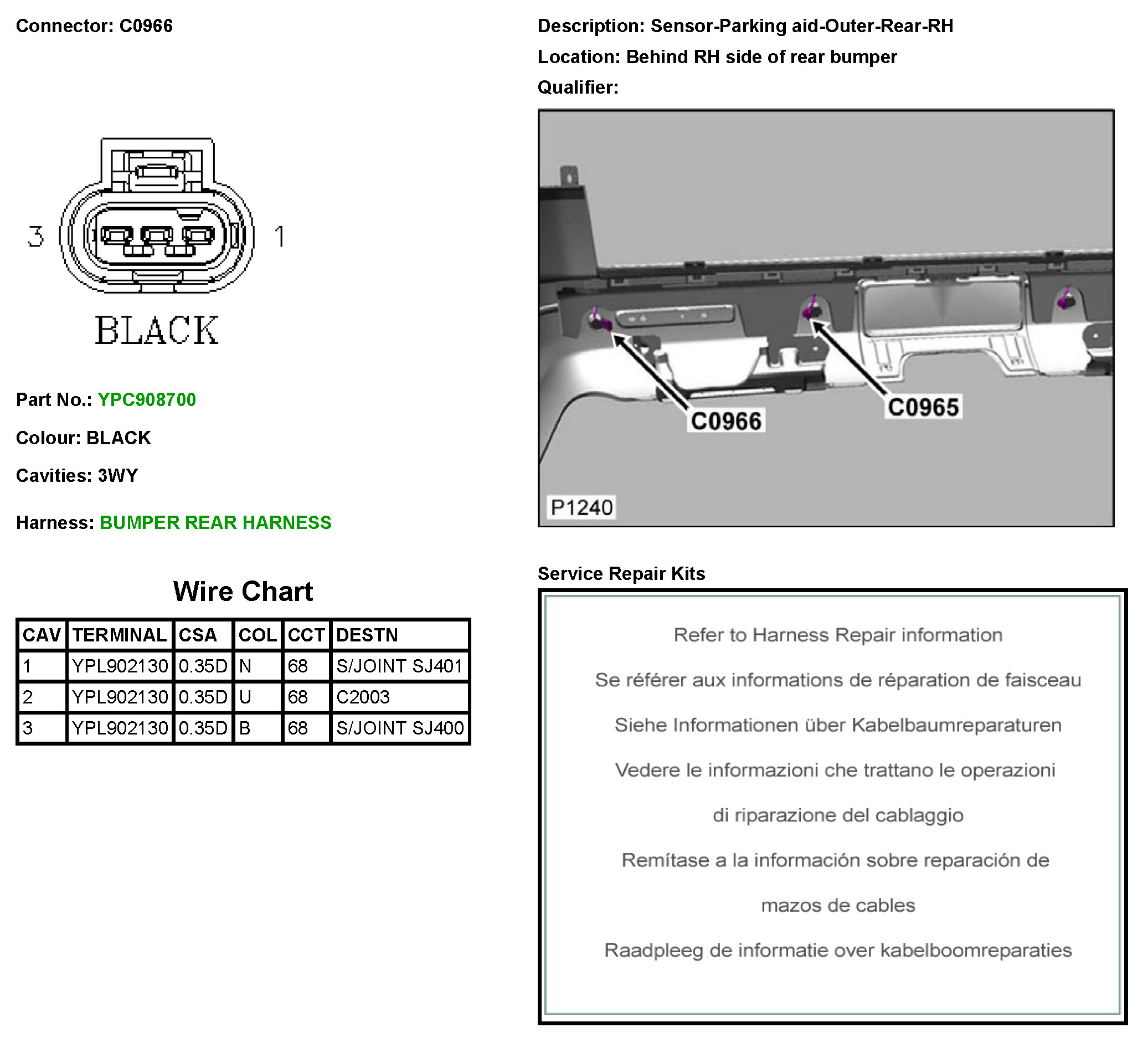

C0966 Sensor-Parking Aid-Outer-Rear-RH
C0966 Sensor-Parking Aid-Outer-Rear-RH
C0966
