Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Alignment Control Module
>>

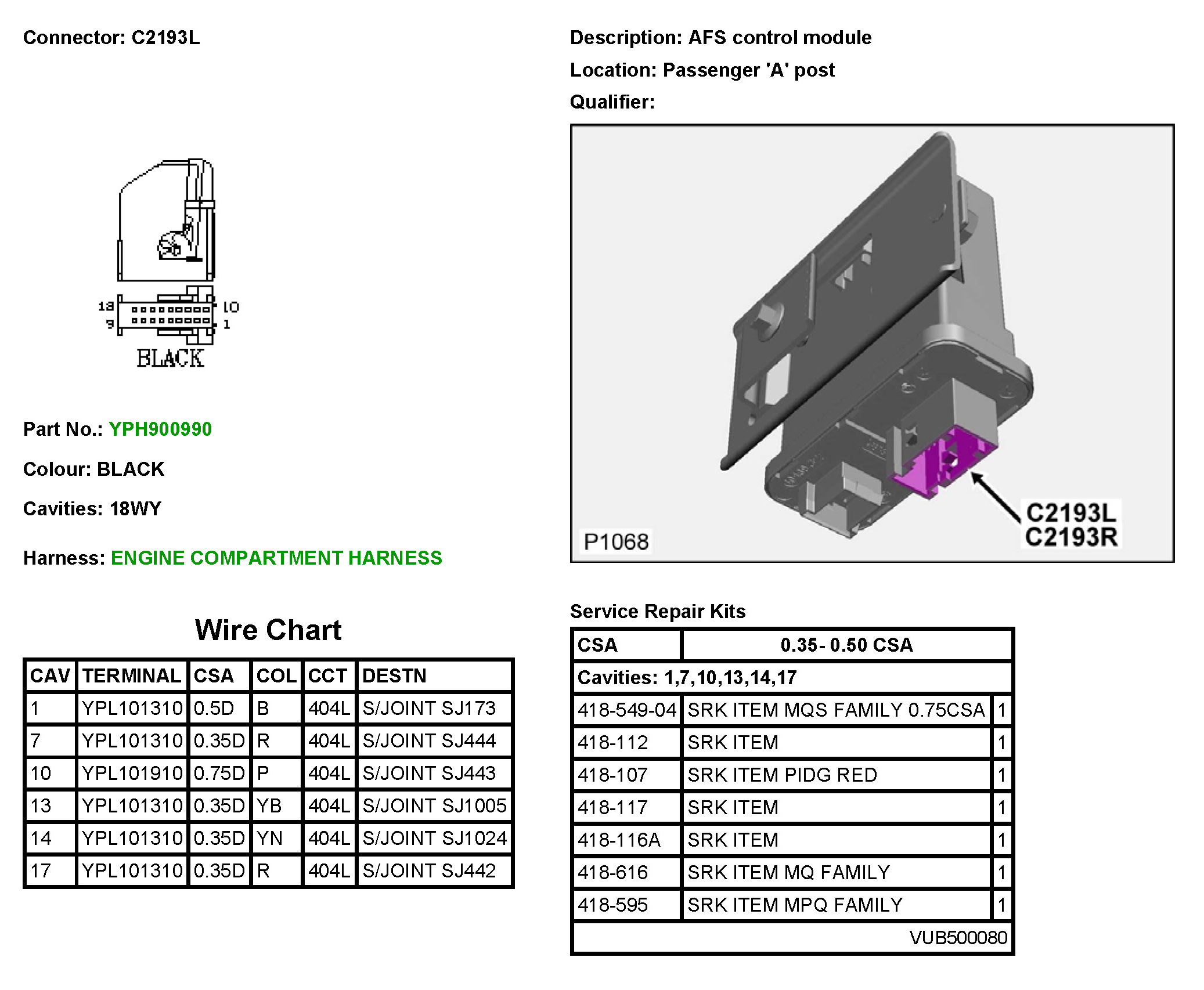

C2193L AFS Control Module
C2193L AFS Control Module
C2193L
