Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>

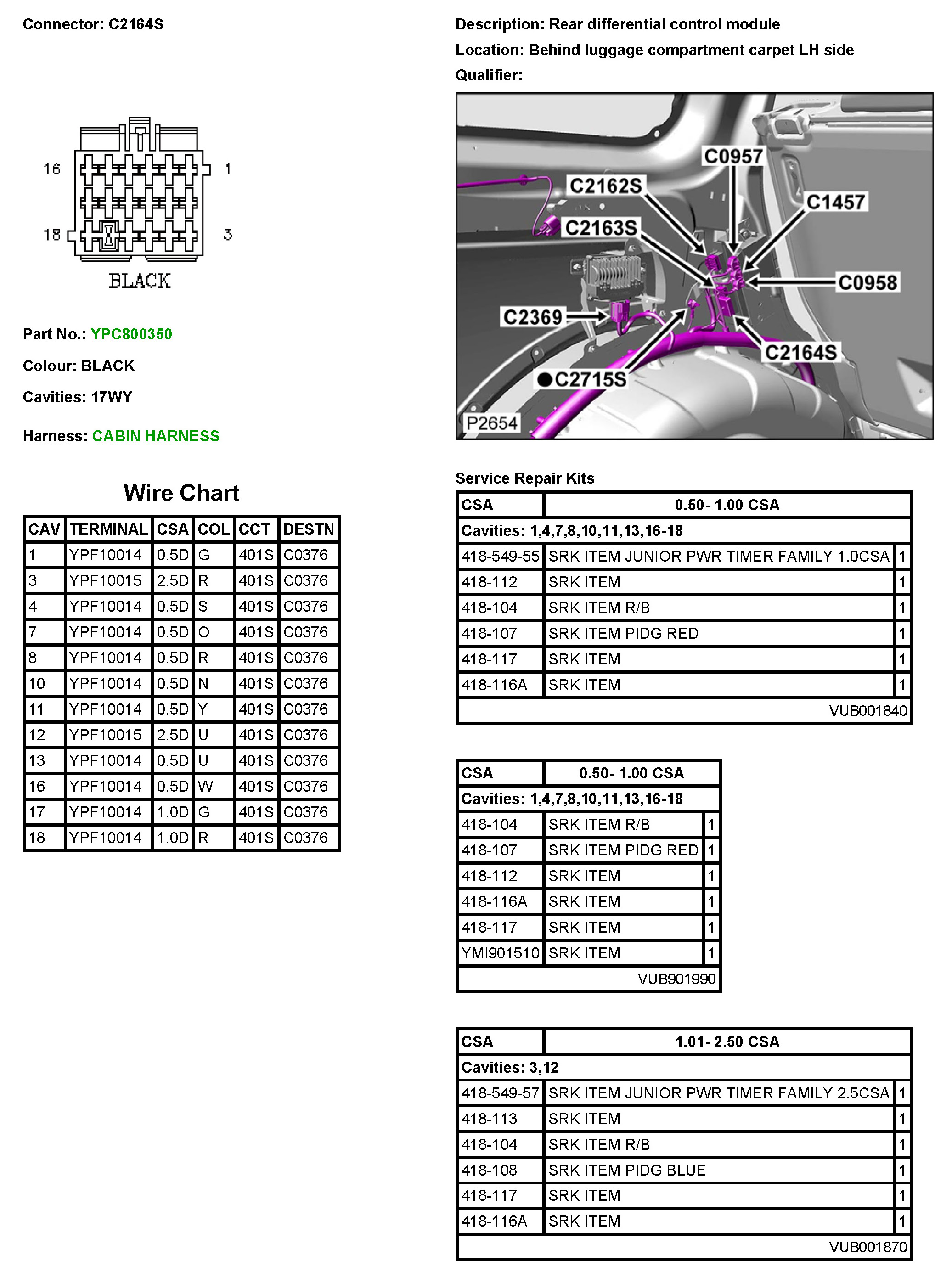

C2164S Rear Differential Control Module
C2164S Rear Differential Control Module

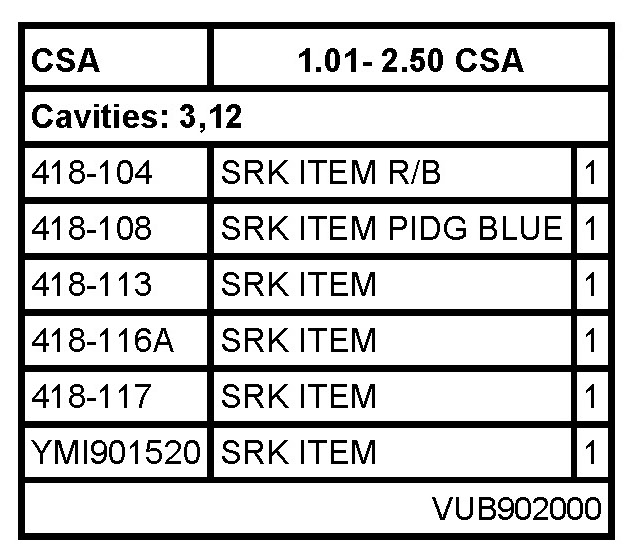

C2164S
