Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
>>

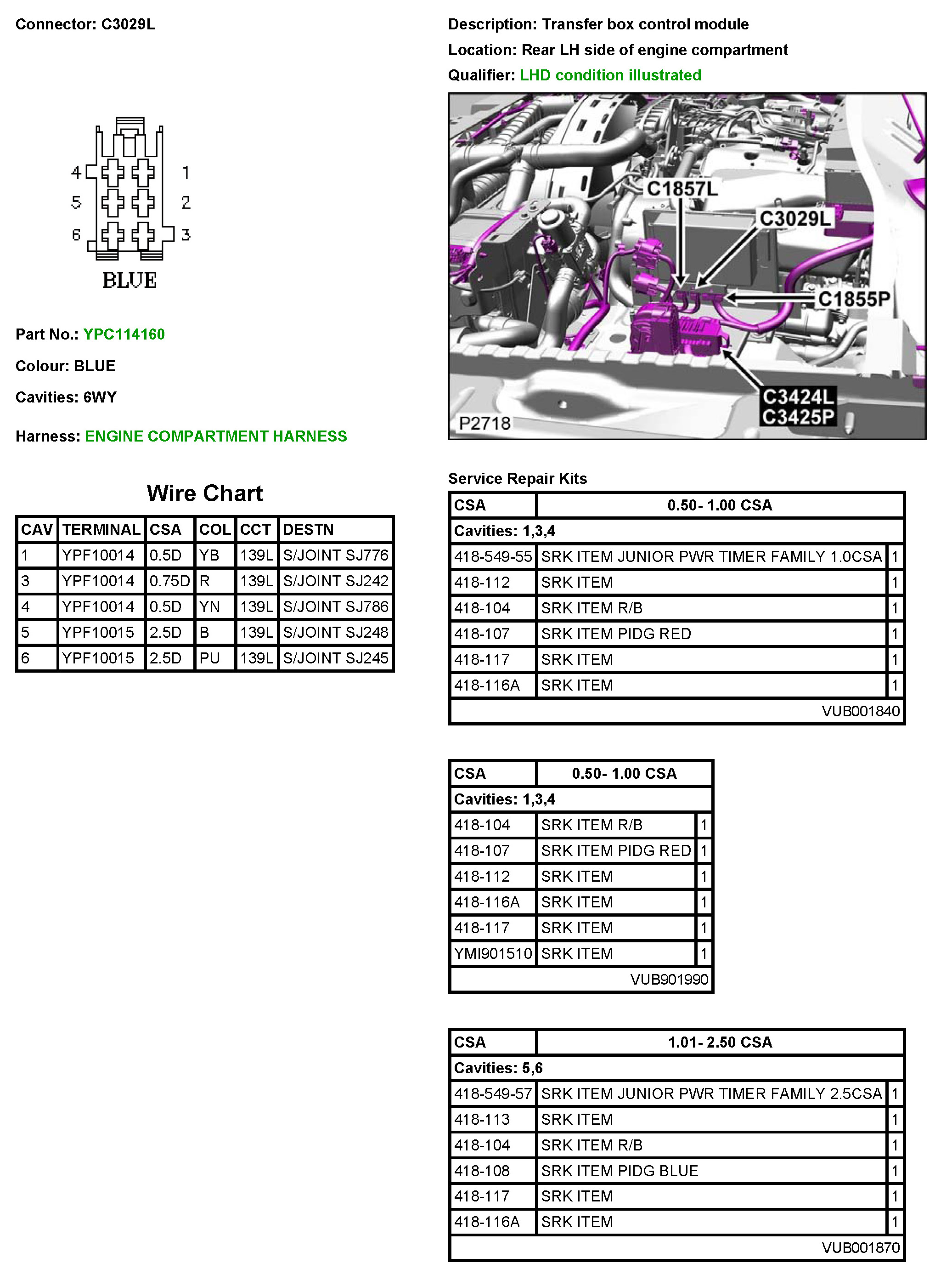

C3029L Transfer Box Control Module
C3029L Transfer Box Control Module
C3029L
