Control Module, Transfer Case
>>

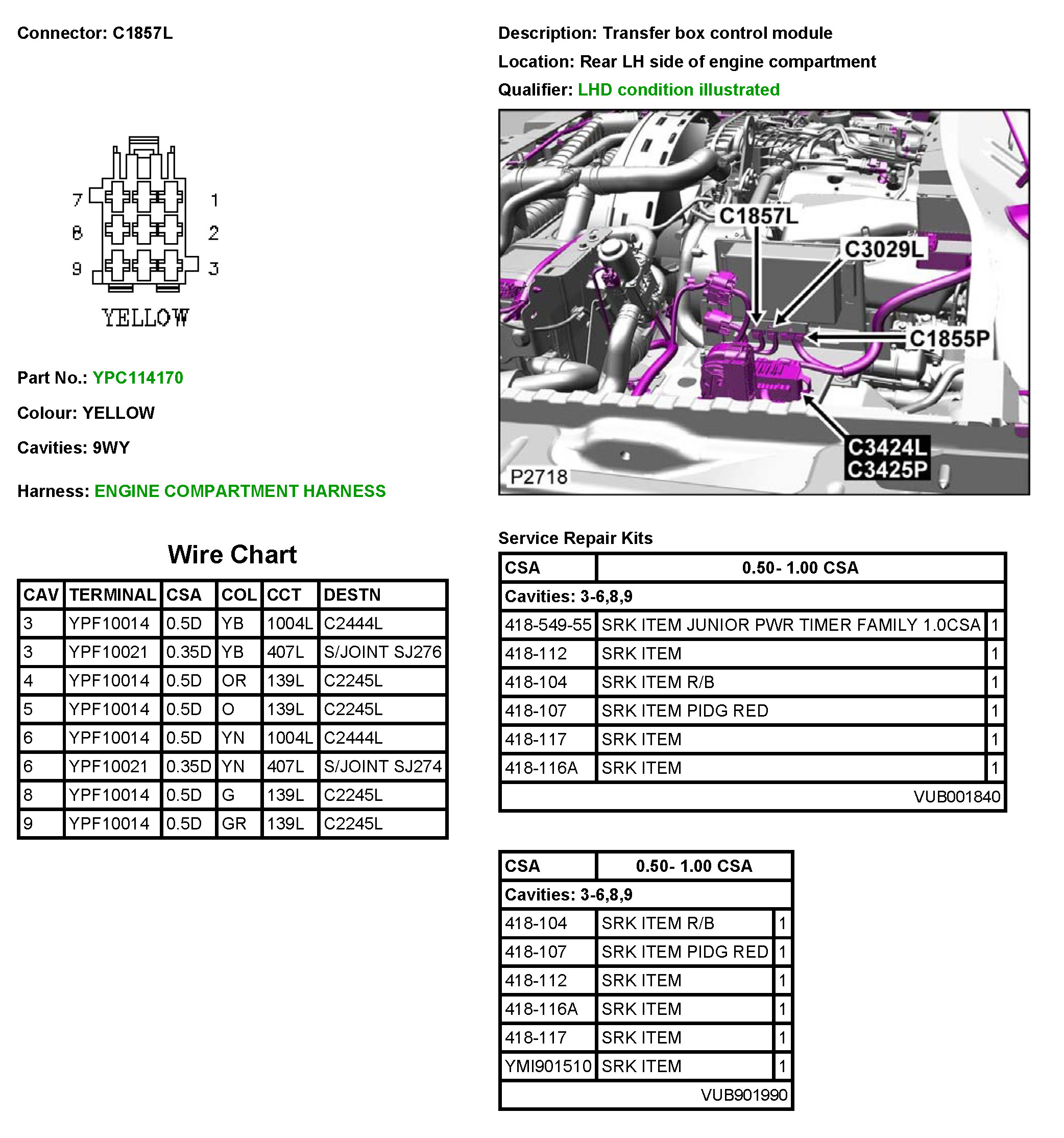

C1857L Transfer Box Control Module
C1857L Transfer Box Control Module
C1857L
