Control Module HVAC
>>

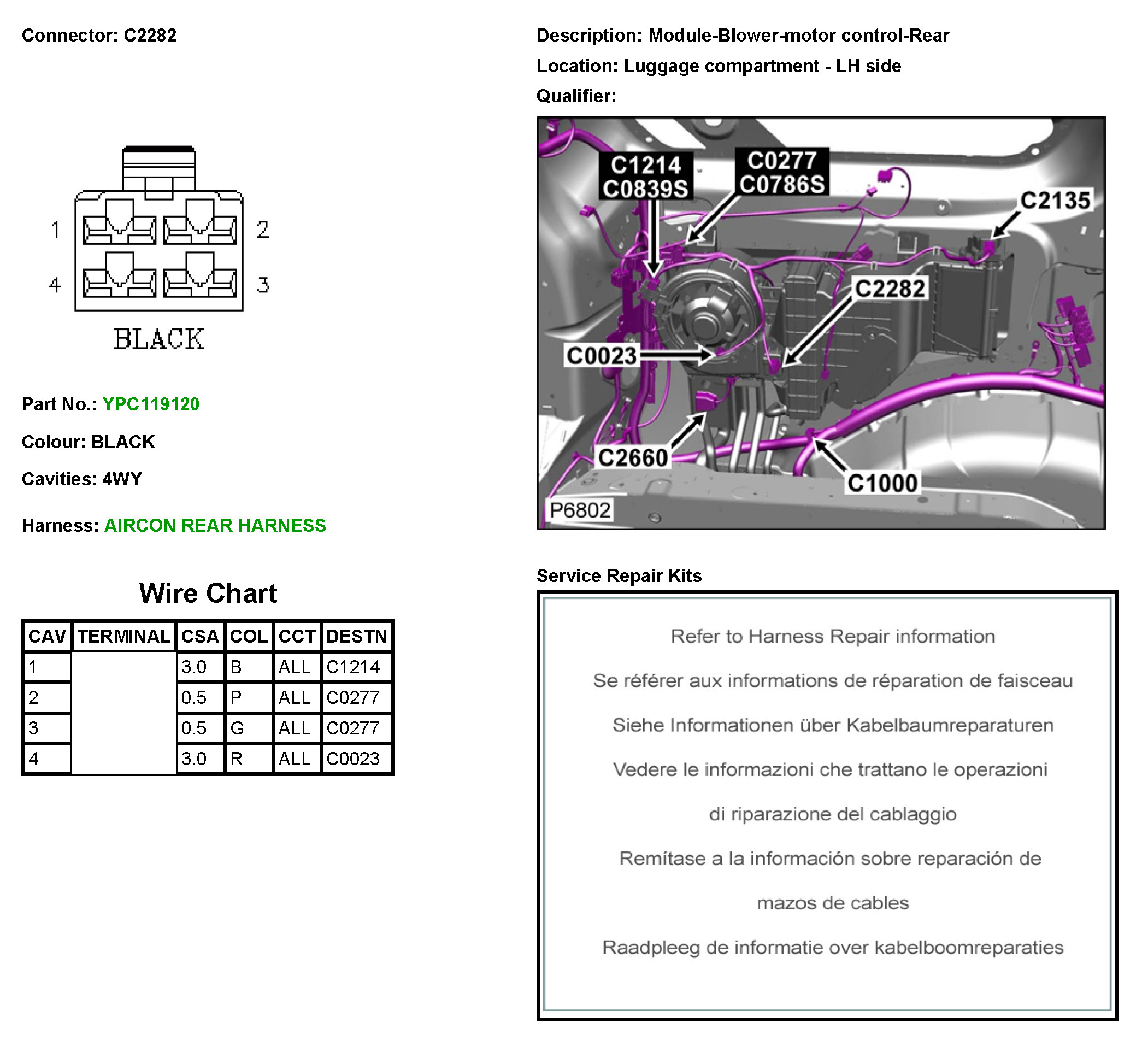

C2282 Module-Blower-Motor Control-Rear
C2282 Module-Blower-Motor Control-Rear
C2282
